20Pin 24Pin Benchtop Power Board, USB ATX Adapter Board, Computer ATX Power Supply Breakout ATX Transfer to Adapter Board 3.3V 5V +/-12V

GY21260-1
5 9
$9.99 $6.99
Contact us for wholesale price
Time Remaining: 4Day 09:38:50.7s
- OR - - OR - Add to Wish List

1.Description:

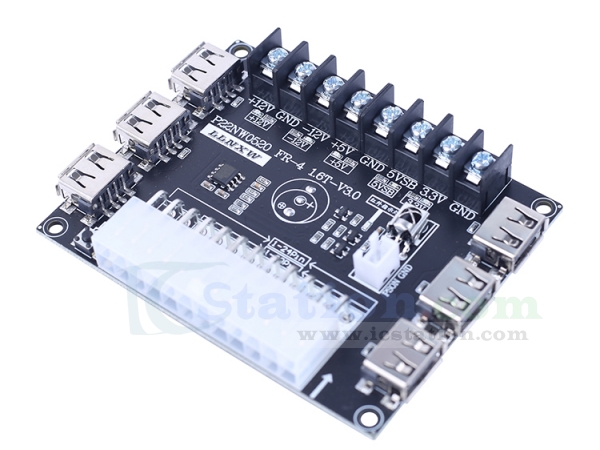

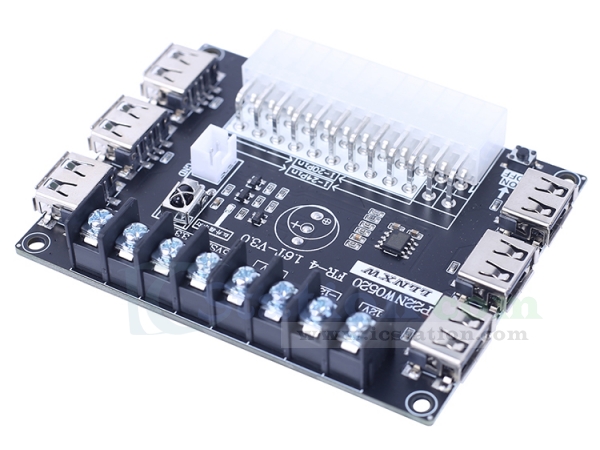

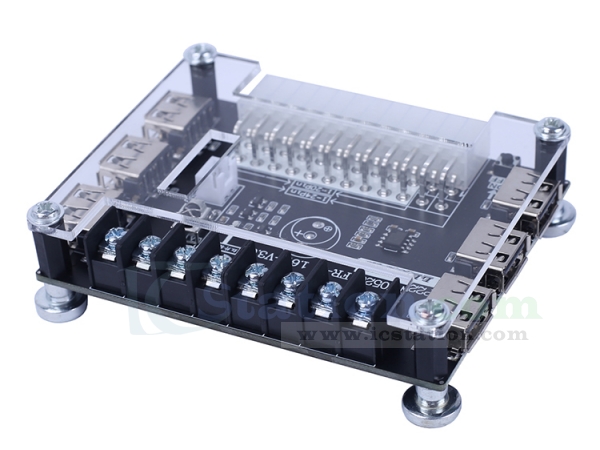

   It is a ATX Adapter Board for 20Pin/24Pin Computer ATX Power Supply Breakout with 6 5V/2.1V USB output port and 3.3V,5V,+/-12V voltage withstand terminal output. It is very suitable for computer power supply, especially for the modification and reuse of old computer power supply.Its unique infrared detection function can be used to check whether various infrared remote controls work normally.

2.Features:
  1>.Compatible with 20Pin and 24Pin ATX computer power supplies.
  2>.Infrared detection function which check whether various infrared remote controller work normally as such TV/air-conditioning.
  3>.Reserve XH2.54-2P power interface for easy connection to MCU or buttons in the future.
  4>.On board 6 USB ports with 5V/2.1V output for phone, tablet PC, mobile power supply, flashlight.
  5>.Voltage withstand terminal output and the wires are firmly connected.

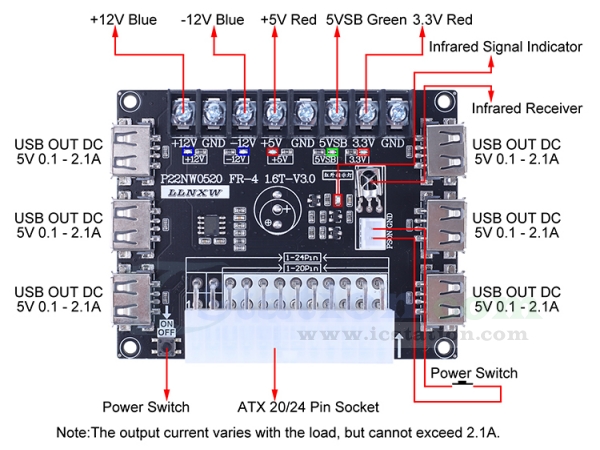

  6>.Multiple voltage value outputs: +12V, -12V, +5V, 5VSB, +3.3V

3.Parameters:
  1>.Product Name: 20/24Pin Benchtop Power Board USB ATX Adapter Board
  2>.Input Type:20Pin or 24Pin ATX Power Supply
  3>.USB Output: 5V/2.1A(Max)
  4>.Terminal Output: +12V, -12V, +5V, 5VSB, +3.3V
  5>.Work Temperature:-20℃~75℃
  6>.Work Humidity:10%~85%RH

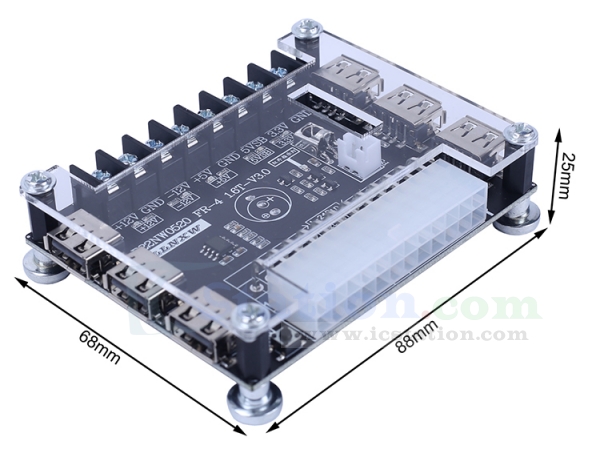

  7>.Size(Installed):88x68x25mm

4.Application:
1>.Old computer power modification
2>.Computer power expansion output port
3>.Production workshop
4>.Home appliances and home furnishings

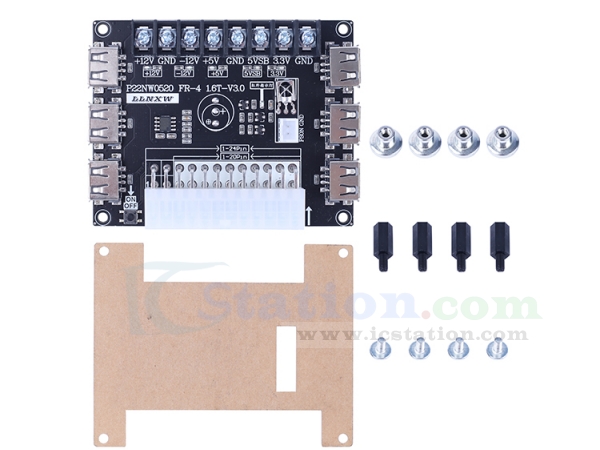

5.Package:
   1pcs 20/24Pin Benchtop Power Board USB ATX Adapter Board
   1pcs Acrylic Plate
   4pcs Nylon Screw Column
   4pcs Magnetic Socket
   4pcs Screw
