5.8GHz Microwave Radar Sensor AC 220V-240V High Sensitivity Human Body Sensor Switch

Item ID: GY19880

5 9

Price: ~~$12.99~~ $9.09

Time Remaining:

Quantity: - OR - - OR - Add to Wish List

Prev: Infrared Human Body Sensor, LED Light Sensor Switch, DC 5V-24V Motion Detector Sensing Distance 1-3 Meters
Next: Human Infrared Sensor Module with Lens

1.Description:

It is a microwave sensor switch.Microwave induction knows that a moving object is approaching or away from the change of the reflected wave.

2.Feature:

1).Its response speed is fast and there is no need to wait.

2).It has higher sensitivity and more precise sensing.

3).Its sensing area is wide,in line with the general distance.

4).It has high safety and stability,and is not affected by temperature,airflow,dust and smoke,etc.

3.Parameter:

1).Product Name:Microwave Sensor Switch

2).Working Voltage:AC 220V-240V

3).Power Frequency:50/60Hz

4).Installation Method:Ceiling installation

5).Power Consumption:0.5W(Max)

6).Transmission Power:0.2mW(Max)

7).Power Load:1200W

8).Detection Angle:360°

9).Working Delay:10 seconds to 30 minutes

10).Detection Distance:1-8 meters

11).Light Control Illuminance:10-2000LUX

12).Work Temperature:-15℃~70℃

13).Work Humidity:5%~95%RH

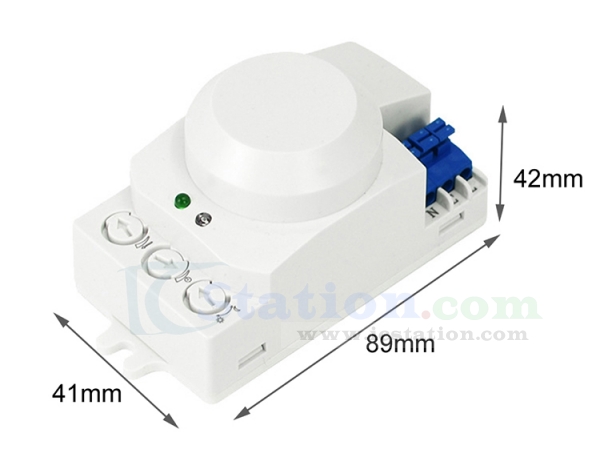

14).Size:89*41*42mm

4.Applicable:

Toilets, underground garages, offices, classrooms, warehouses, corridors, corridors,etc.

5.Package:

1pcs Microwave Sensor Switch
