DC 10V-50V PWM Motor Speed Controller Regulator LED Dimmer DC 12V 24V 36V 48V 15A

Item ID: 13399

5 9

Price: ~~$6.99~~ $4.89

Quantity	10+	20+	30+
Price	$4.50	$4.20	$3.99

Time Remaining:

Quantity: - OR - - OR - Add to Wish List

Prev: DC 3V-12V Gradient Light Controller Automatic Dimmer Breathing Light Driver
Next: L298N Motor Drive Controller Board Module Dual H Bridge DC Stepper for Arduino

1.Description:

ZK-GZT is a PWM DC Motor Speed Controller and LED Dimmer. It changes the output by adjusting the potentiometer to change the PWM signal.

2.Features:

1>.High frequency 20Khz

2>.Signal pure

3>.PWM 1% ~ 100%

4>.Support high current 15A

5>.High quality knob

6>.Knob supports switch function

7>.MOS diode protection

8>.Signal stability.

9>.It is not affected by the start and stop of the motor.

3.Parameters:

1>.Product Name:ZK-GZT PWM DC Motor Speed Controller

2>.Product Number:ZK-GZT

3>.Working Voltage:DC 10.0V-50.0V

4>.Output Current:0~15A

5>.Output Power:300W(Max)

6>.Stand-by current:7uA

7>.PWM Duty cycle:1%~100%

8>.PWM Frequency:20KHz

9>.Working Temperature range:-20℃~85℃

10>.Working Humidity range:0%-95%RH

11>.Install Hole diameter:2mm

12>.Size:77*32*25mm

4.Using Steps:

1>.Stop rotating the potentiometer counterclockwise until hear from potentiometer. It is used to turn OFF output.

2>.Connect DC motor or LED at output terminal.

3>.Connect right input voltage at input terminal.

4>.Adjust potentiometer to adjust motor speed or LED brightness.

5.Note:

1>.It is a DC motor speed regulator.So it can not input AC, otherwise the module will be damaged.

2>.Power supply positive and negative can not be reversed, otherwise the module will be damaged.

3>.Drive part and adjustment part can be separated.

4>.Please read use manual and description before using it.

6.Application:

1>.Motor speed control

2>.Adjust lamp brightness

3>.Robot control

4>.Smart car control

5>.Toy

6>.Smart home

7.Package:

1>.1pc ZK-GZT PWM DC Motor Speed Controller;

2>.1pc 40cm XH2.54-5P Female to Female Cable.

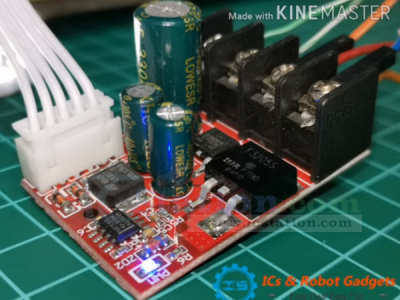

Tested by ICStation's Outstanding Partner DrakerDG:
