CNC Stepper Motor Driver DC 10V-30V 4A 1/32 Micro-Step Resolutions for Nema 17 23 Stepper Motor Forward Reverse Controller

GY20512
5 9
$30.99 $21.69
Quantity3+5+10+
Price$25.00$24.60$24.10
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
1.Description:
  ZK-SMC02 is an operation control module specially designed for single-axis stepper motors. The module has built-in multiple fixed operation modes, and the user can quickly select the appropriate motion trajectory.It can save the setting parameters after power off.

  It supports setting distance/speed/delay/cycle times. It can run independently as a module, or it can be used in conjunction with other systems. It can be used in general industrial control occasions.

2.Features:
   Integrated step motor controller and driver functions: It can not only realize the drive motor, but also control the working state of the stepper motor in real time

   Motor forward and reverse control: It can not only change rotation direction by pressing button, but also by potentiometer. It is also automatically change the direction through the selected working mode to achieve multi-scene and multi-application

   4 Control Mode: In addition to its built-in parameters work mode,it can also control by external buttons or others driver or UART commands

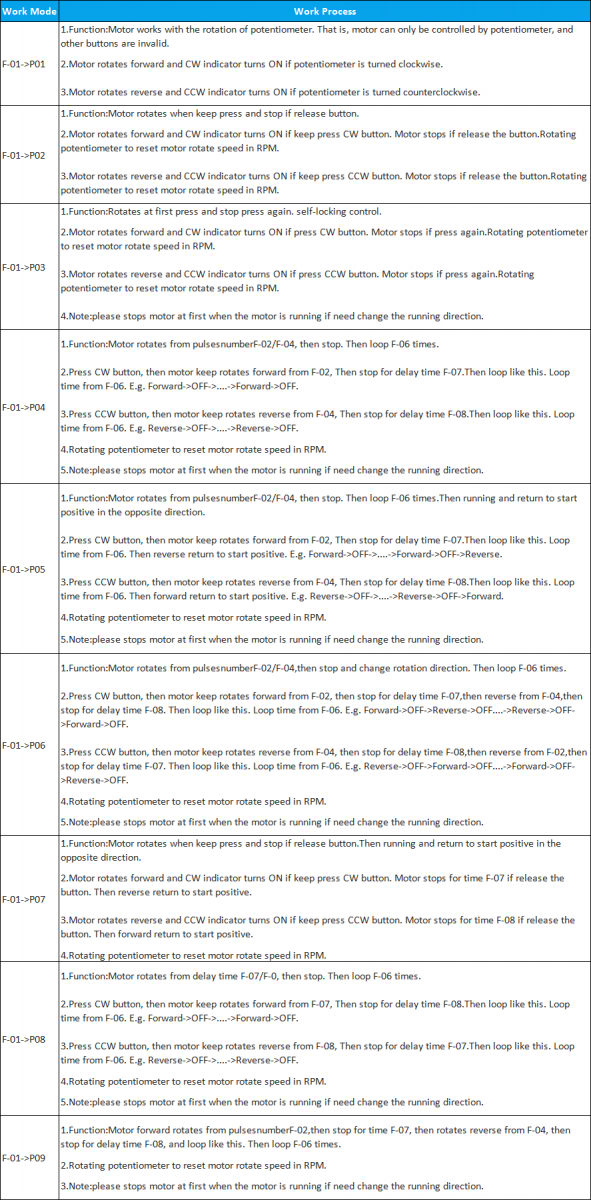

  9 work states: Built-in 9 default workflow programs, covering most applications, to meet the needs of different scenarios.Forward/Reverse/Delay/Loop/Self-locking/No-lock/Rotating speed and so on

  HD LCD display: The HD LCD can clearly display the speed/delay/cycle times, making it easier to browse and set various parameters. Realize high-precision control of the motor. Parameters support memory function that will not be lost

3.Parameters:
  1>.Product name:ZK-SMC02 CNC Stepper Motor Driver
  2>.Input voltage:DC 10V-30V
  3>.Output/driver current:4A(Max)
  4>.Control shafts:Single axis
  5>.Suitable motor:42/57 step motor(Nema17/23 motor)
  6>.Control speed:0.1-999RPM
  7>.Forward pulses number:1-9999
  8>.Reverse pulses number:1-9999
  9>.Loop times:1-9999
  10>.Forward delay time:0.0-999.9s
  11>.Reverse delay time:0.0-999.9s
  12>.Subdivision:1/2/4/8/16/32
  13>.Acceleration and deceleration control:Yes
  14>.Input reverse polarity protection:Yes
  15>.Control modes:Auto/Manual/Setup
  16>.Work Temperature:-20℃~85℃
  17>.Work Humidity:5%~95%RH
  18>.Module Size:79*43*41mm

4.Setting methods:

1>.Running interface:
1.1>.The first line displays rotating speed in RPM.
1.2>.The second line displays delay time or loop times which can be set by F-10 menu.
1.3>.Press CW button to clockwise/forward rotating.
1.4>.Press CCW button to counterclockwise/reverse rotating.
1.5>.Press RUN/STOP button to start or stop rotating.
1.6>.Rotate the potentiometer to change the forward or reverse rotation speed. Note:the operation mode is different in different modes.
1.7>.Keep press potentiometer more than 3second enter into parameter set mode.

2>.Parameter interface:
2.1>.Rotate the potentiometer to change parameter F-01~F-13 after enter parameter set mode.
2.2>.The selected parameter keeps blinking.
2.3>.Press potentiometer to selected parameter value.
2.4>.Modify Value Method 1: Directly rotate the potentiometer to change value.
2.5>.Modify Value Method 2: Press the potentiometer again and the selected bit keep blinking. Then rotate the potentiometer to change value for this bit form 0 to 9. Modify other bits in the same method which can improve setup efficiency and save your time.
2.6>.Press RUN/STOP button return to parameter(Note:parameter and parameter value are not the same).
2.7>.Set others parameters and parameters value if needs.
2.8>.Save and exit parameter set mode after keep press potentiometer more than 3second.

3>.Auxiliary function:
3.1>.It can work independently by default, only need to connect the power supply and stepper motor, and no longer need to connect other accessories.
3.2>.Users can also connect external control buttons to change the operation mode. External control buttons can input from COM/STOP/CCW/CW/OUT terminal on PCB.
3.3>.Users can also connect other types of stepper motor driver and just use ZK-SMC02 alone as a stepper motor controller.Auto/Manual/Setup

4>.Work Mode:
4.1>.Automatic Control Mode: Step motor works with ZK-SMC02’s parameters set.
4.2>.Manual Control Mode: This mode needs connect buttons to COM/STOP/CCW/CW terminal on ZK-SMC02.
4.3>.Setup Control Mode: This mode needs connect to others stepper motor driver and just use ZK-SMC02 alone as a stepper motor controller.


5.Note:
1>.It is suitable for 2 phase stepper motors whether it is 4-wire or 5-wire or 6-wire or 8-wire.
2>.It has built-in drivers and controllers, but can also connect other drivers.

6.Application:
1>.Industrial Automation Control
2>.CNC machine
3>.Mechanical packaging
4>.Electronic processing and testing
5>.Automatic assembly line

7.Package:
 1pc ZK-SMC02 CNC Stepper Motor Driver
