TDA7297 15W+15W Dual Channel Audio Amplifier Board DIY Kit

3010
5 1
$4.99 $3.49
Quantity10+30+50+100+
Price$3.40$3.20$2.99$2.80
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

Cheaper Buy Together

$5.56-6%Bundled Price:$5.22
Description:
PCB Size: 4.8cmx4.8cm;
Voltage: DC 9-15V, AC 9-12V, recommended DC voltage 12V, current 2A above;
Power: 15W +15 W;
Output Impedance: 4-8 ohm

Please noted: This is DIY Kit. You need to assemble it by yourself.  If you do not want to assemble it step by step, you can also buy the complete finished product here.

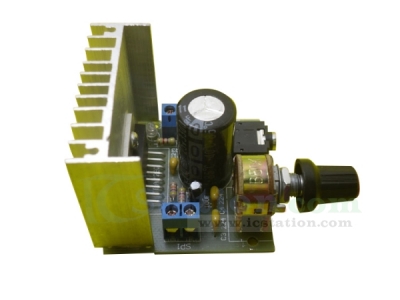

Module Diagram:

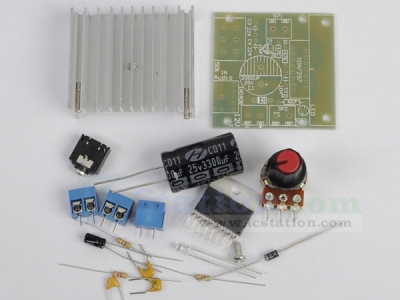

Shipping List:
PCB board x1
Heatsink x1
M3*6 screw x1
TDA7297 x1
50K double potentiometer x1
Potentiometer cap x1
3.5 Audio Block x1
KF301-2P Terminal Block x3
10UF/25V electrolytic capacitor x1
3300UF/25V electrolytic capacitor x1
224 monolithic capacitor x2
104 monolithic capacitor x1
1N4007 x1
47K Resistance x2
4.7K resistor x1
3MM Blue LED x1

Module Details:


The product comes with a heat sink
