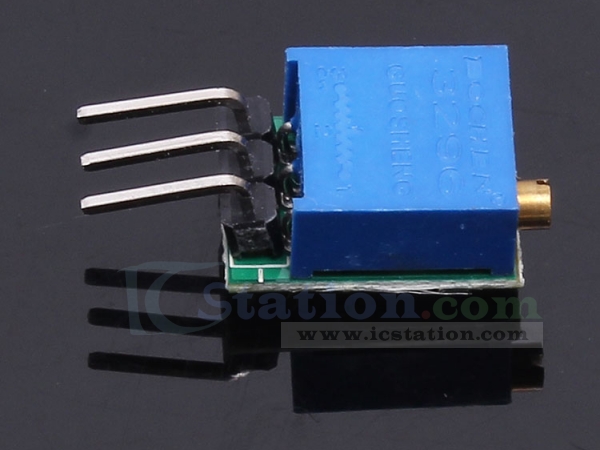

DC 5-15V 0.5Hz-70Hz Square Output Adjustable Vibrator Pulse Generator Signal Source

Product Introduction:
1.Power Voltage:DC 5-15V;no load operating current 2.5MA(5V);no load operating current 6.5MA(12V)
2.Output Driving Current:200MA (MAX)
3.Size:13*10*8mm(not include pin),pin space 2.54mm
4.Application:as signal source in circuit

Function:
1.After add power,output port will output square signal,amplitude euqals to power voltage
2.Output duty cycle cannot be adjusted,and output signal duty cycle is stable（50%-65%) during the process of adjusting frequency
3.Frequency can be adjusted multi-coil potentiometer,and adjusting range is 0.5Hz～70Hz

Pin Definition:
1.+:power
2.Vo:signal output port
3.-:ground
