1.Description:
YLC-1.1AC220 is a Timer Relay Switch Module .It will start to countdown and turn ON output after get a input trigger signal by press button. Trigger again is invalid during the countdown period.
2.Features:
1>.Adjust countdown time
2>.Button signal trigger
3>.Support parameter memory function
4>.Relay switch output
5>.Support AC 85V-265V work voltage
6>.Automatic level control
3.Parameters:
1>.Product Name:YLC-1.1AC220 Timer Relay Switch Module
2>.Product Number:YLC-1.1AC220
3>.Working Voltage: AC 85V-265V
4>.Trigger Type:Button Control
5>.Output Type:Relay Switch Output(Not voltage output!)
6>.Load Voltage:AC250V 10A or DC30V 10A
7>.Display: 3Bit Red LED Display Screen
8>.Working Temperature range:-20℃~85℃
9>.Working Humidity Range:5%-100%RH
10>.Module Size:78*39*22mm
4.Set Countdown Time:
1>.Press Middle button to set countdown time range:
1.1>.Its countdown time range is 0.01~9.99second if display ‘0.00’
1.2>.Its countdown time range is 0.1~99.9second if display ‘00.0’
1.3>.Its countdown time range is 1~999second if display ‘000’
1.4>.Its countdown time range is 1~999minute if display ‘000.’
2>.Press Left button to set countdown time value:
2.1>.Press Left Button at the first time:The first bit will flashing.It is used to adjust the highest bit for the Countdown Time Value.Then press others button to set value for 0~9.
2.2>.Press Left Button at the second time:The second bit will flashing.It is used to adjust the middle bit for the Countdown Time Value.Then press others button to set value for 0~9.
2.3>.Press Left Button at the third time:The third bit will flashing.It is used to adjust the lowest bit for the Countdown Time Value.Then press others button to set value for 0~9.
2.4>.Press Left Button at the fourth time to save parameters and return to normal display status and start countdown time.
2.5>.Keep press Right button more than 2second to turn ON or OFF display screen
5.Function:

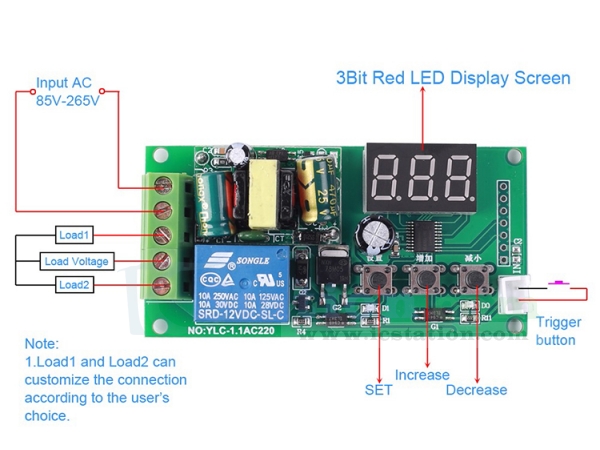

1>.Connect right work voltage from input terminal.
2>.Set countdown time as following set method.
3>.Press button start to countdown and the relay output will turn ON.
4>.Press again is invalid during the countdown period.
5>.Turn OFF output after countdown.
6>.Press again to start another countdown.
6.Note:
1>.It is a relay switch output so it can not output voltage!
2>.It needs two voltage:work voltage and load voltage.
3>.Please read use manual and description before use.
7.Application:
1>.Delay switching
2>.Counter
3>.Access control system
4>.Car circuit modification
5>.Motor
6>.The electromagnetic valve
7>.Light strip
8.Package:

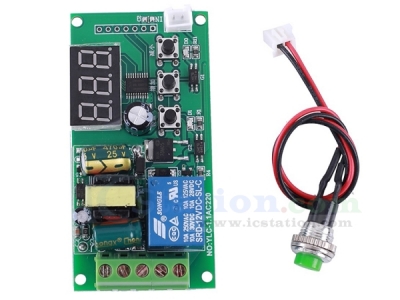

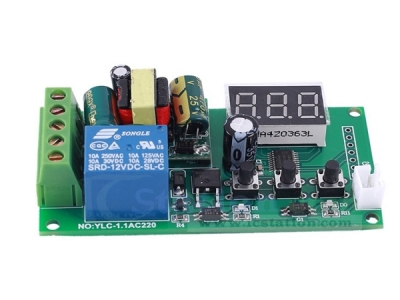

1>.1pcs YLC-1.1AC220 Timer Relay Switch Module
2>.1pcs 20cm XH2.54-2P Cable with Momentary Switch
