DC 0-10V to 4-20mA Non-Isolated Voltage to Current Converter Module LED Indicator DC7-30V For Circuit Safety Protection Equipment

1.Description:
    It is a 0-10V to 4-20mA Voltage to Current Converter. It can convert DC 0-10V voltage signal to 4-20mA current signal.User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.

2.Feature:
    1>.Repeatable setting parameters
    2>.Constant current output source
    3>.Flame retardant material connector

3.Parameter:
    1>.Product Name:0-10V to 4-20mA Voltage to Current Converter
    2>.Working Voltage:DC 7V-30V
    3>.Input Signal Voltage:DC 0-10V(Default)
    4>.Output Signal Current:4mA-20mAV(Default)
    5>.Precision: 1mA
    6>.Working Temperature range:-10℃~60℃
    7>.Working Humidity Range:10%-90%RH

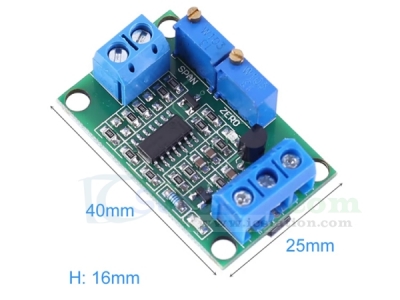

    8>.Module Size:40*25*16mm

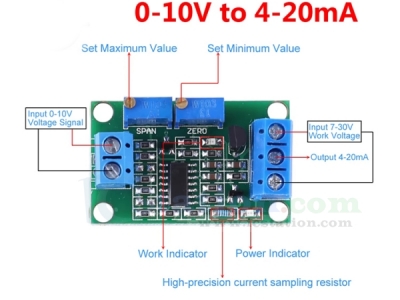

4.Reset Parameter:
    1>.For example: set the module to 1.3V-2.4V to 3mA-18mA.
    2>.Input 1.3V voltage signal.
    3>.Adjust ZERO(Right) potentiometer until the output current is 3mA.
    4>.Input 2.4V voltage signal.
    5>.Adjust SPAN(Left) potentiometer until the output current is 18mA.

5.Application:
    1>.PLC industrial controller
    2>.Circuit safety protection equipment
    3>.Factory circuit design
    4>.Industrial measuring instruments

6.Package:
   1pcs 0-10V to 4-20mA Voltage to Current Converter
