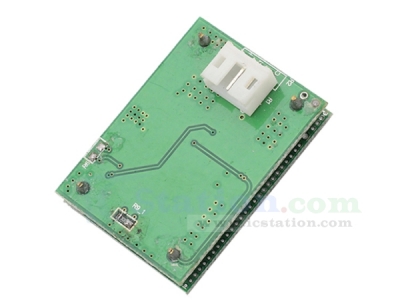

2.25GHz Microwave Radar Sensor Module 6-9M Smart Sensor Switch Radar Detector Sensor DC 3.3-20V for Smart Home

7740
5 1
$5.59 $3.91
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Share

Cheaper Buy Together

2.25GHz Microwave Radar Sensor Module 6-9M Smart Sensor Switch Radar Detector Sensor DC 3.3-20V for Smart Home
2.25GHz Microwave Ra...
$5.59 $3.91
DC 5V 5.8G 5.8GHz Microwave Radar Sensor Switch Module ISM Waveband Sensing Module 12m HFS-DC06
DC 5V 5.8G 5.8GHz Mi...
$8.99 $6.29
$10.21-6%Bundled Price:$9.59
Description:
1. It adopts Doppler radar technology, with auto-sensing capabilities to control other product.
2. High sensitivity, sensor distance, reliability, wide angle sensor, wide supply voltage range and other characteristics.
3. Widely used in lighting situations,anti-theft alarm situations.

Features:
1. Microwave sensors using planar antenna to receive echo.
2. The switch is active sensors.
3. The sensors emit a high-frequency electromagnetic waves and receives their echo.
4. The sensors detect changes within echo.
5. The sensors detect tiny movement in detect range.
6. Send signal to MCU and execution instruction.
7. Signals are likely to be detected through the door, glass and thin walls.
8. It will get best probe result if person or object when moving toward the sensor.
9. This product is a strong anti-jamming capability, almost without wind, heat and other environmental factors foreign interference

Parameter:
1. Working voltage: 3.3-20VDC;
2. Standby quiescent current: <3mA;
3. Transmit power: <2mW;
4. The working environment temperature:  -20℃~+80℃;
5. Trigger: Repeat Trigger (default);
6. The output signal: TTL level; high->3.3V/Low->0V;
7. Detection angle: 360°(spherical) no dead ends;
8. Detection range: 6-8 meters (when ordering optional). The default setting 7 meters;
9. The working delay: 1 second to 120seconds, the default setting 30S;

Usage Notice:
1. It is better away from wall about 3-4 meter. against get sensor from another side of wall.
2. Open areas more responsive

Application:
1. Security
2. Intelligent Lighting
3. Body sensors toys
4. Industrial automation and control
5. Auto-sensing electrical equipment
6. Battery-powered automatic control

I. Tested by ICStation Outstanding Partner arduinoLab:





Learn More Details in the Video:
(The language in the video is Russian)



II. Tested by ICStation Outstanding Partner LeRoy Miller:



Learn More Details in the Video:
(The language in the video is English)

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2017-03-17 03:23:59
Works well. Output stay high by default 1s and not 30s but it's ok. No problem so far.
