2.4in TFT LCD Touch Display Screen 320*240 HIMI UART Intelligent Display Screen

GY21289-1
5 9
$10.99 $7.69
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List

1.Introduction:
It is a 2.4 inch serial port screen TFT LCD screen display HMI touch screen.

2.Feature:
1>.Extremely fast swipe time.
2>.The stainless steel frame is fixed.
3>.String instruction communication.
4>.Medical-grade serial smart screen.

3.Parameter:
1>.Touch Type: Resistive
2>.Resolution: 320*340
3>.TFT type: TN
4>.Brightness: 300nit
5>.Operating voltage: 4.65-6.5V
6>.Operating current: 95mA
8>.Sleep current: 31mA
9>.Flash Capacity: 4M (Bytes)
10>.Running memory: 3584 (Bytes)
11>.Serial Command Buffer: 1K (Bytes)
12>.Main Control Frequency: 64M(Hz)
13>.Ratio: 4:3
14>.Size: 2.4 inches
15>.Work Temperature: -20~70℃
16>.Work Humidity: 0%~95%RH

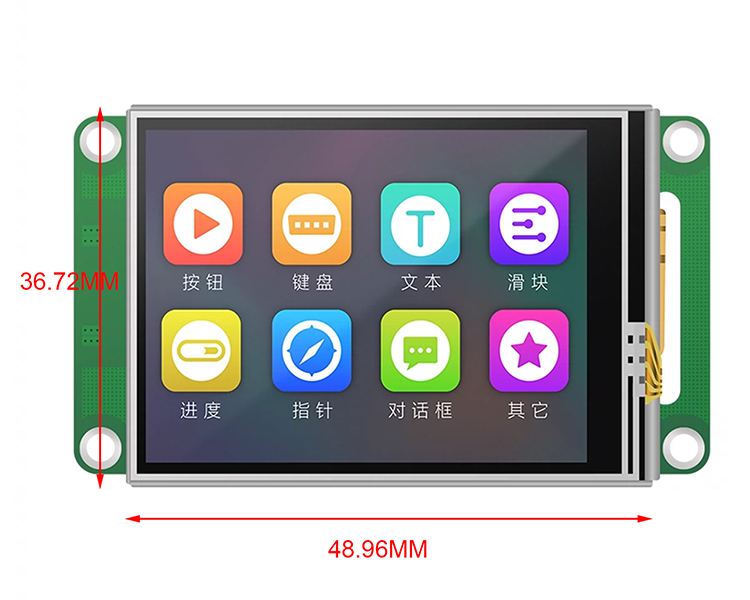

17>. Effective Display Size: 48.96MM*36.72MM

4.Package:
  1pcs 2.4 inch TFT LCD screen.
