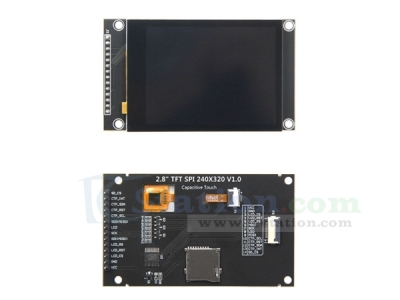

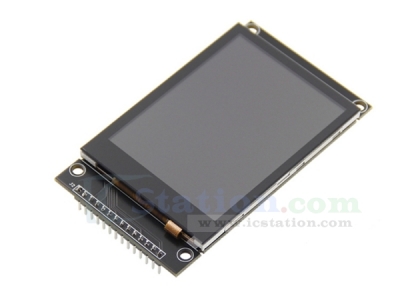

2.8in IPS TFT LCD Touch Display Screen 320x240 SPI 65K ILI9341 Driver

1.Introduction:
It is a 2.8 inch SPI Serial TFT LCD Capacitive Touch Screen Display Module 240*320 IPS Version Black

2.Feature:
1>.2.8inch color screen with 240x320 resolution of 65K colors and rich display colors.
2>.The upgrade adopts IPS full view panel, with good visual angle.
3>.On board level conversion circuit, compatible with 5V and 3.3V MCU.
4>.Adopting a 4-wire SPI serial bus to save I/O pins.
5>.Optional capacitive touch/no touch function for modules.
6>.Module input supports 2.54 pin interface and FPC extension interface.
7>.Equipped with micro TF card slot for easy storage expansion.

3.Parameter:
1>.Screen Size: 2.8 inch
2>.Screen Type: IPS
3>.Resolution: 240xRGBx320 (pixels)
4.>.Number of Colors(Max):262K
5>.LCD Driver IC: ILI9341V
6>.Display Interface: 4-Line SPI
7>.Pixel Size: 0.153(H)x0.153(V)(mm)
8>.View Angle: ALL 0’CLOCK
9>.Brightness(TYP): 280(cd/m2)
10>.Backlight Type: White LED*4
11>.Touch Screen Type: Capacitive Touch Screen
12>.Touch Screen Resolution: 240x320(pixels)
13>.Touch Screen Driver IC: FT6336G
14>.Communication Interface: IIC
15>.Working Voltage: 5.0 V
16>.Backlight Current：80 mA
17>.Power: 0.4 W
18>.Interface: 14P 2.54mm spacing Header and 0.5mm spacing FPC seat
19>.Work Temperature:-10~50℃
20>.Work Humidity:0%~95%RH

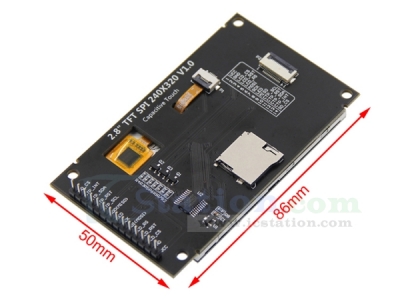

21>.Size: 50x86x12.78MM(including Pin Header)

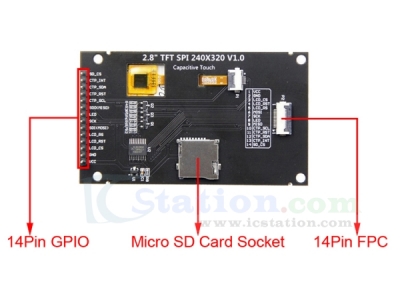

4.Interface Function Description:
1>. 14 Pin Header: 2.54mm spacing row pins, module signal input pins.
2>. Micro SD Slot: Insert a Micro SD card to expand storage space, such as storing big data content such as fonts and images.
3>.14P FPC: 0.5mm FPC terminal, used for module signal input with the same function as 14 Pin.

5.Pin Function Description:
1>. VCC: Power positive.
2>. GND: Power ground.
3>.LCD_CS: LCD selection control signal, Low level active.
4>. LCD_RST: LCD reset control signal, Low level reset.
5>. LCD_RS: LCD command / data selection control signal (High level: data, low level: command).

6>.SDI(MOSI): SPI bus write data signal(SD card and LCD screen used together).
7>. SCK: SPI bus clock signal(SD card and LCD screen used together).
8>. LED: LCD backlight control signal (If you need control, please connect the pins. If you don't need control, you can skip it).
9>.SDO(MISO): SPI bus read data signal (SD card and LCD screen used together).
10>. CTP_SCL: Capacitive touch screen IIC bus clock signal (modules without touch screens do not need to be connected).

11>. CTP_RST: Capacitor touch screen reset control signal, low-level reset (modules without touch screens do not need to be connected).
12>.CTP_SDA: Capacitive touch screen IIC bus data signal (modules without touch screens do not need to be connected).
13>. CTP_INT: Capacitor touch screen IIC bus touch interrupt signal, when generating touch, input low level to the main control (modules without touch screens do not need to be connected).
14>. SD_CS: SD card selection control signal, low level active (without SD card function, can be disconnected).

5.Package:
  1pcs 2.8 inch TFT SPI 240*280 Capacitive Touch .
  1pcs 14P FPC 0.5 Reverse 30CM
