1.Description:
WZ-6008 is a multi-function Step Down Power Supply Module.Its main function is to output voltage as a constant voltage constant current source. It can be used to test the discharge time and discharge capacitance of the input voltage.
It uses a 2.4-inch high-definition LCD liquid crystal display and the content is displayed on multiple screens. Output voltage 0-60.00V adjustable and the output current is adjustable from 0-5.000A.
2.Features:
1>.Constant Voltage Constant Current output
2>.2.4in High-definition LCD screen display
3>.480W High power output
4>.60V high voltage output
5>.8A maximum current output
6>.Multiple display pages
7>.Support over-voltage protection
8>.Support over-current protection
9>.Support over temperature protection
10>.Support under voltage protection
11>.Support button/parameter lock function
12>.Support 5 sets of data storage function
13>.Parameter super high display resolution
14>.Support statistics running time
15>.Support statistics output capacity
16>.Support statistics output energy
17>.Multiple parameters are displayed simultaneously
18>.Support power-down memory function
19>.Backlight brightness can be set
20>.Support PC set and read parameters
3.Parameters:
1>.Product name:WZ-6008 480W Step Down Power Supply Adapter
2>.Model:WZ-6008
3>.Input voltage:DC 6.0V~70.0V
4>.Input voltage resolution:0.01V
5>.Output voltage:DC 0.0V~60.0V
6>.Output voltage resolution:0.01V
7>.Output current:0.000A~8.000A
8>.Output Current resolution:0.001A
9>.Output power:0.0W~480.0W
10>.Input voltage precision:+/-1%
11>.Output voltage precision:+/-0.3%
12>.Output current precision:+/-0.5%
13>.Output ripple value:100mW(Peak)
14>.Statistics output time:00:00:00~99:59:59h
15>.Statistics output energy range:0~9999.99Wh
16>.Statistics output capacity range:0~9999.99Ah
17>.Capacity statistical error:+/-2%
18>.Screen brightness level:0~6
19>.Display:2.4inch TFT LCD
20>.Work Temperature:-10℃~40℃
21>.Work Humidity:0%~95%RH
22>.WZ-6008 Size:170*78*68mm
23>.U2T Size:40*24*10mm
4.Button Description:
1>.Long press means need keep press button more than 3second.
2>.V-SET:Set output voltage value.
3>.I-SET:Set constant current output value.
4>.P-SET:Set protection voltage/current value.
5>.ON/OFF:Turn ON/OFF output.
6>.M1:Move up selected parameter or read M1 data group.
7>.M2:Move left selected parameter or read M2 data group.
8>.M3:Move down selected parameter or read M3 data group.
9>.M4:Move right selected parameter or read M4 data group.
10>.OK:Short press to confirm option and long press to lock parameter.
11>.Potentiometer:Short press to enter to menu and rotate the potentiometer to modify the parameter value.
12>.Power Button:Short press button to turn ON/OFF power supply adapter.
5.Set Method:
1>.The background of the parameter becomes pink highlight when the parameter is selected.
2>.Set Output Voltage:

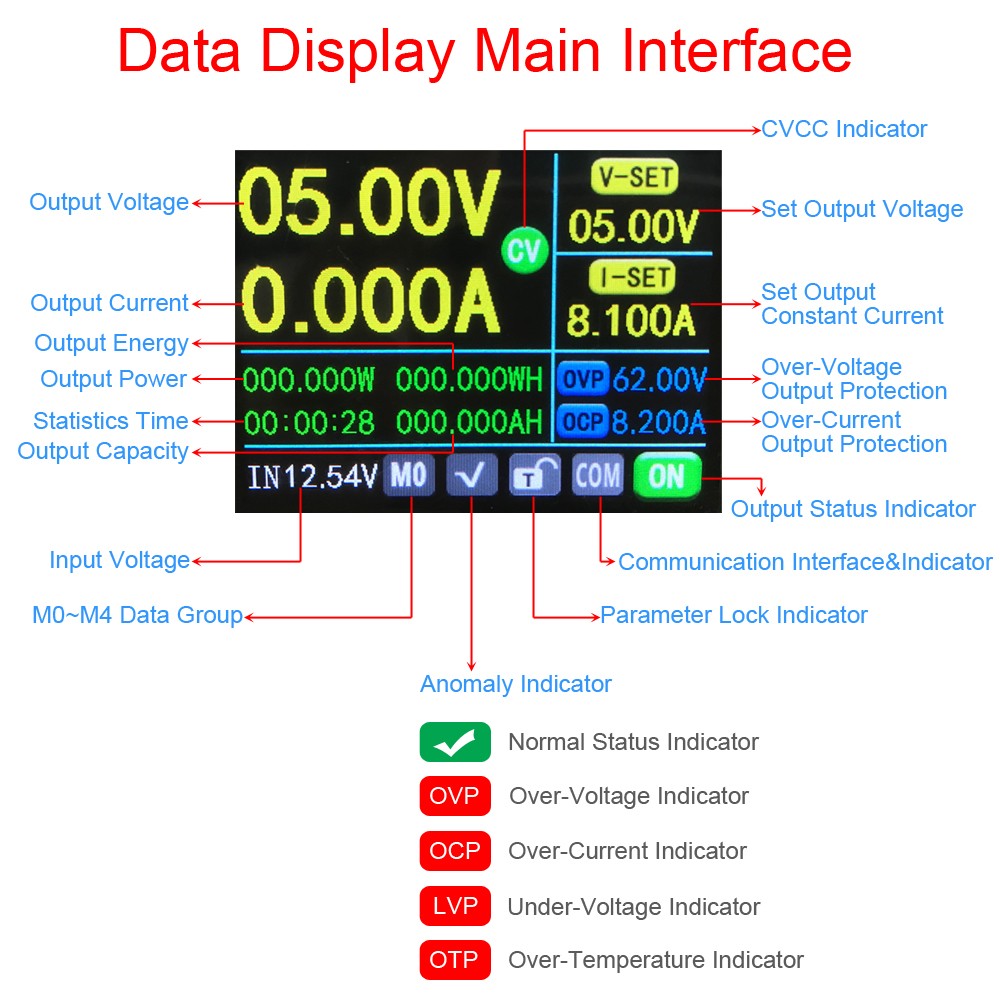

2.1>.Press V-SET button to set output voltage and then the last bit will be selected at first. An interface will pop up on the right side of the LCD at Wave Display Main Interface.
2.2>.Rotate the potentiometer to change the parameter value.
2.3>.Press M2 or M3 button to select the next bit and set value by rotate the potentiometer in the same method.
2.4>.Press V-SET button again or OK button to save parameters and exit.
3>.Set Output Constant Current:
3.1>.Press I-SET button to set output constant current and then the last bit will be selected at first. An interface will pop up on the right side of the LCD at Wave Display Main Interface.
3.2>.Rotate the potentiometer to change the parameter value.
3.3>.Press M2 or M3 button to select the next bit and set value by rotate the potentiometer in the same method.
3.4>.Press I-SET button again or OK button to save parameters and exit.
4>.Set Over-Voltage Protection Value:
4.1>.Press P-SET button to set over-voltage protection value and then the last bit will be selected at first.An interface will pop up on the right side of the LCD at Wave Display Main Interface.
4.2>.Rotate the potentiometer to change the parameter value.
4.3>.Press M2 or M3 button to select the next bit and set value by rotate the potentiometer in the same method.
4.4>.Press P-SET button again or OK button to save parameters and exit.
5>.Set Over-Current Protection Value:
5.1>.Double click P-SET button(or press P-SET button after set Over-Voltage Protection Value) to set over-current protection value and then the last bit will be selected at first. An interface will pop up on the right side of the LCD at Wave Display Main Interface.
5.2>.Rotate the potentiometer to change the parameter value.
5.3>.Press M2 or M3 button to select the next bit and set value by rotate the potentiometer in the same method.
5.4>.Press P-SET button again or OK button to save parameters and exit.
6>.Read M1~M4 Data Groups: Keep press M1~M4 more than 3second to read or exit M1~M4 Data Groups.
7>.Lock Parameter: Keep press LOCK Button more than 3second to locking or unlock parameter. The parameter can not be set at locking status.
8>.Rotating the potentiometer can modify the parameter values of the coordinate axis at Wave Display Main Interface.
6.Use steps:
1>.Connect right work voltage from IN+ and IN-.
2>.Press Power Button to turn ON power supply adapter.
3>.Press V-SET and M2/M2 and potentiometer to set output voltage value.
4>.Press I-SET and M2/M2 and potentiometer to set constant current output value.
5>.Set others parameter as required following operate manual.
6>.Connect load at output Red and Black terminal.
7>.Press ON/OFF to turn ON output.
7.Application:
1>.Ordinary power supply
2>.Battery charger
3>.LED drive power
4>.Instrument voltage display
5>.Test meter
6>.Circuit test
7>.Power conversion
8.Note:
1>.It is a DC power module,So it can not connect to AC power.
2>.Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.
3>.It only works on Windows but can not for Mac and others.
4>.Please make sure input power is more than load power.
5>.Please step down output power if module is hot.
6>.Please read use manual and description before use.
9.Package:
1pcs WZ-6008 480W Step Down Power Supply Adapter
1pcs WZ-U2T USB to TTL Converter Module
1pcs 35cm XH2.54-4P Cable
2pcs M3+4mm Screw
2pcs M3 Nut
