5PCS Solar Charging Module 3.6V 3.7V 4.2V Charging protector

13538
5 9
$5.95 $4.17
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:

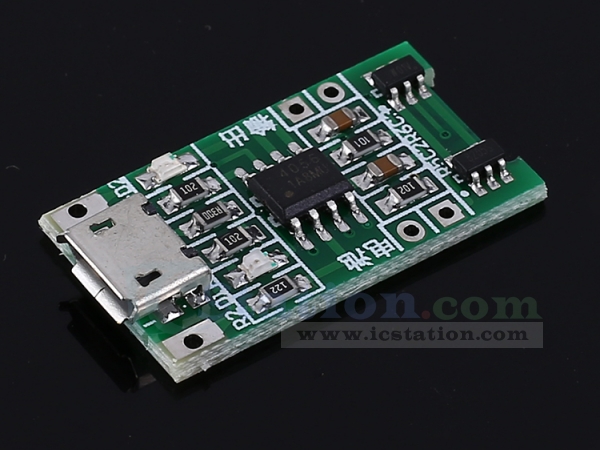

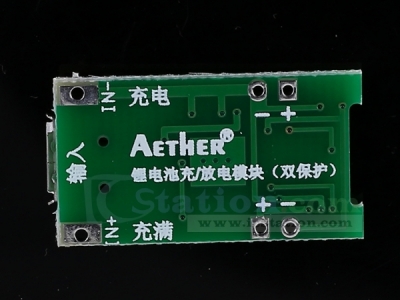

It is a solar charging module for single lithium battery. Support charging and discharging at the same time.

Parameters:
1>.Item Name:Solar Charging Module
2>.Model:None
3>.Work voltage:DC 5V-6VV
4>.Charging cutoff voltage:DC 4.2V
5>.Charging current:1000mA(Max)
6>.Battery over-discharge protection voltage:2.5V
7>.Battery overcurrent protection current:3A
5>.Work Temperature:-40℃~85℃
6>.Work Humidity:0%~95%RH
7>.PCB Size:27*14.7*4.1mm
LED indicator:
Charging:LED D1 ON
Charged:LED D2 ON
Near saturation:LED D2 ON and D1 flashing

Note:
1>.Please input from micro USB at first to activate module before connect battery.
2>.It needs activate module if re-connect battery.
3>.If using solar energy as a power supply.Please connect a zener diode such as IN4733 between IN+ and IN-.
4>.Reverse connection protection is not supported.

Application:
1>.3.6V or 3.7V lithium battery.
2>.Solar charging

Package:
5pcs Solar Charging Module
