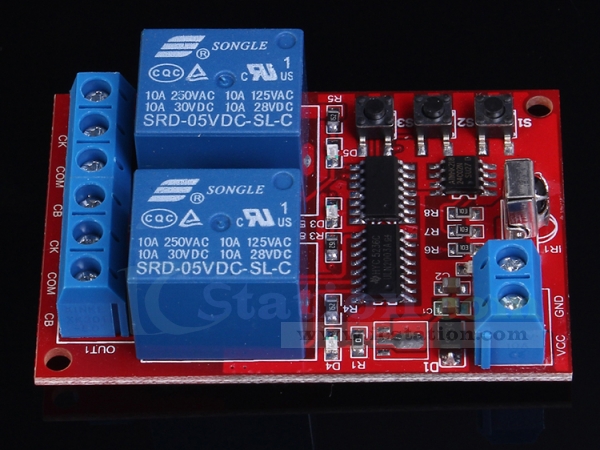

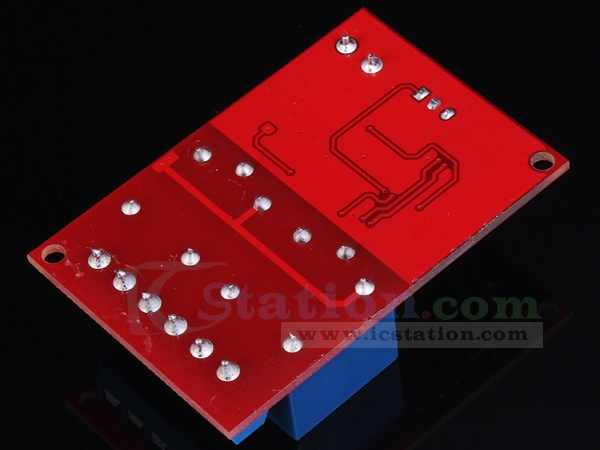

5V 2-Channel 2bit Infrared Receiver Learning Type Module + 3-Key Black Remote Control 150mA

Product Introduction:
1.Operating Voltage:4.5-5.5V (VCC connects with power positive;GND connects with power negative;NC,COM,NO connect with output;load power is less than 1000W)
2.Module Specification:L60*W40*H21mm
3.Module Type:learning type (support NEC format infrared remote control);all operating current is no more than 150mA
4.Operating Mode:self-lock;inching;inter-lock random switch
5.Operating Indication:D2 (power indicator lamp),D3 (learning indicator lamp);D4-D5 (relay switch indicator lamp)

Using Method:
  There are 3 keys in total:S1,S2,S3 (defaults output low level)
1.Single Channel Learning Method:
  The first channel learning:after power on,press S1 key and then loosen,the learning indicator lamp will flash for once.Press the second key to be learned on the remote control,the learning indicator lamp will flash quickly for three times;it represents the first channel learning is successful
  The second channel learning:after power on,press S2 key and then loosen,the learning indicator lamp will flash for once.Press the third key to be learned on the remote control,the learning indicator lamp will flash quickly for three times;it represents the second channel learning is successful

2.Full Off Learning:
  After power on,and press S2,S3 at the same time;then loosen the two keys,the learning indicator lamp will flash for twice and off;then press the first key on the remote control,the learning indicator lamp will flash quickly for three times;it represents full off function has been set successfully

3.Self-LOck,Inter-Lock,Inching Mutual Switch Operation Steps:
  Inter-lock:when power off,press the learning key S1 and power on;the learning indicator lamp will flash quickly for three times;set as inter-lock output (press the key on the remote control,corresponding channel will output while other channels are all closed and no output)
  Self-lock:when power off,press the learning key S2 and poower on;the learning indicator lamp will flash quickly for three times;set as self-lock output (press the key on the remote control,corresponding channel negation will not affect state of other channels;if loosen the remote control,output state will remain)
  Inching:when power off,press the learning key S3 and power on,the learning indicator lamp will flash quickly for three times;set as inching output (press the key on the remote control,corresponding channel will output;if loosen the remote control,the output will be stopped)
