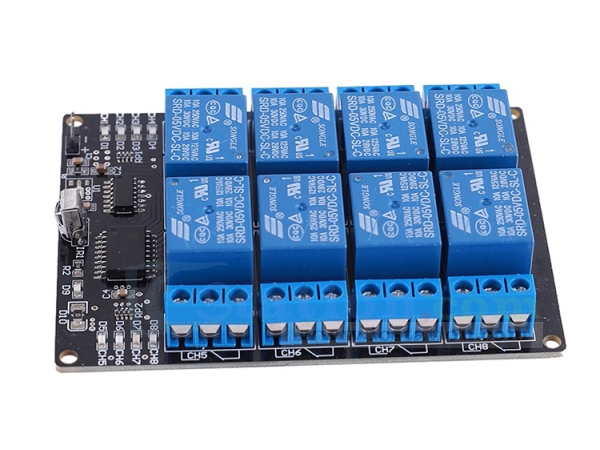

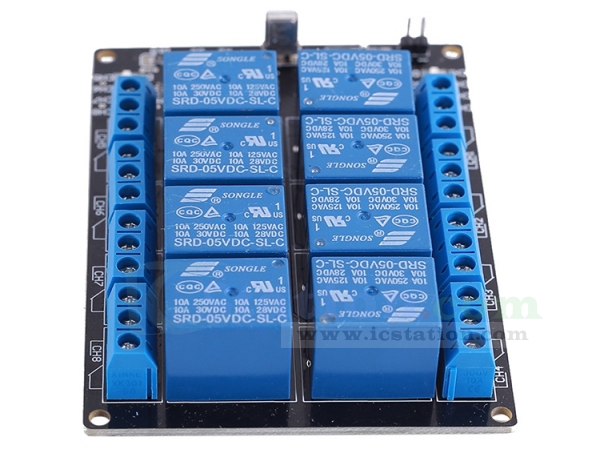

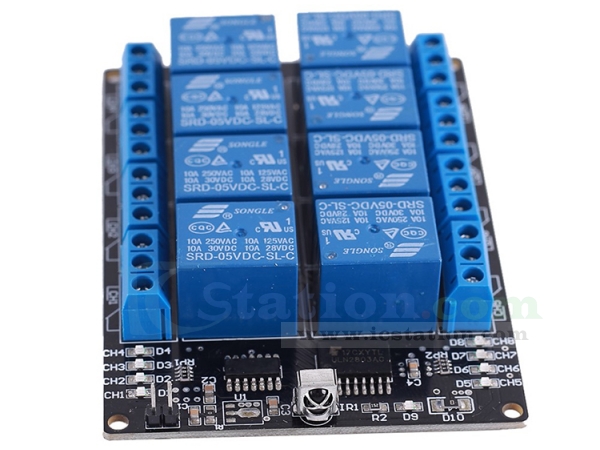

DC 5V 8-Channel Infrared Receiver Module 9-Key Remote Control Self-Lock Control Switch Module

GY18360
5 9
$28.99 (only 0 pcs )
Contact us for wholesale price

Sold out


1.Description:

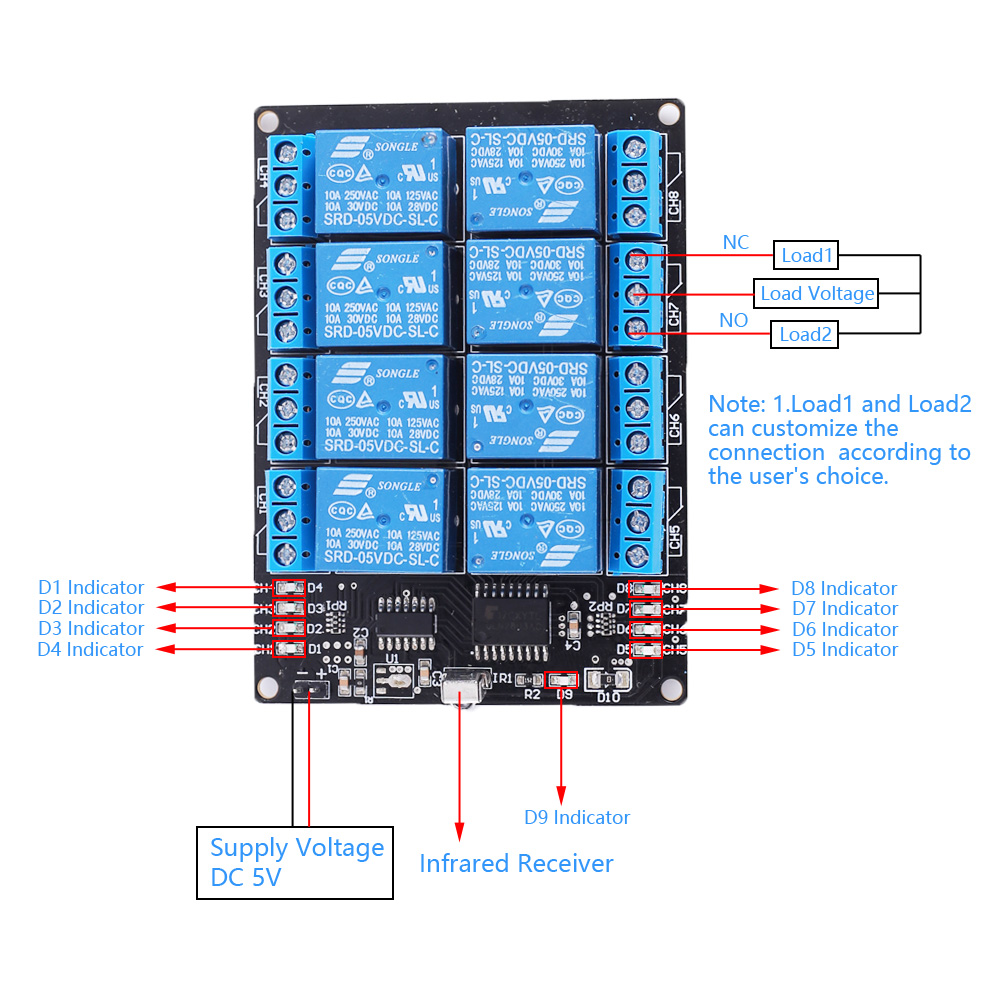

  It is a 8bit infrared receiver module.This connection is a self-locking receiver and remote control kit.When the equipped 9-key remote control presses CH1,the relay CH1 of the receiving board pulls in LED D1,and when CH1 is pressed again,the relay CH1 releases LED D1,and the CH2 key also corresponds Control relay CH2 and LED D2,CH3 to CH8 and so on,the power button of the remote control simultaneously controls the pull-in and release of all relays,so 8-channel self-locking remote control switches can be realized.

2.Feature:
  1>.It has fixing holes for easy use.
  2>.Low power consumption
  3>.It has a working indicator.
  4>.Its receiving distance is long

3.Description:
  1>.Product Name:8bit Infrared Receiver Module
  1>.Supply Voltage:DC 5V
  2>.Quiescent Current:5mA(Max)
  3>.Working Current:250mA(Max)
  4>.Remote Control Distance:8 meter(Max)
  6>.Work Temperature:-25℃~85℃
  7>.Work Humidity:5%~95%RH

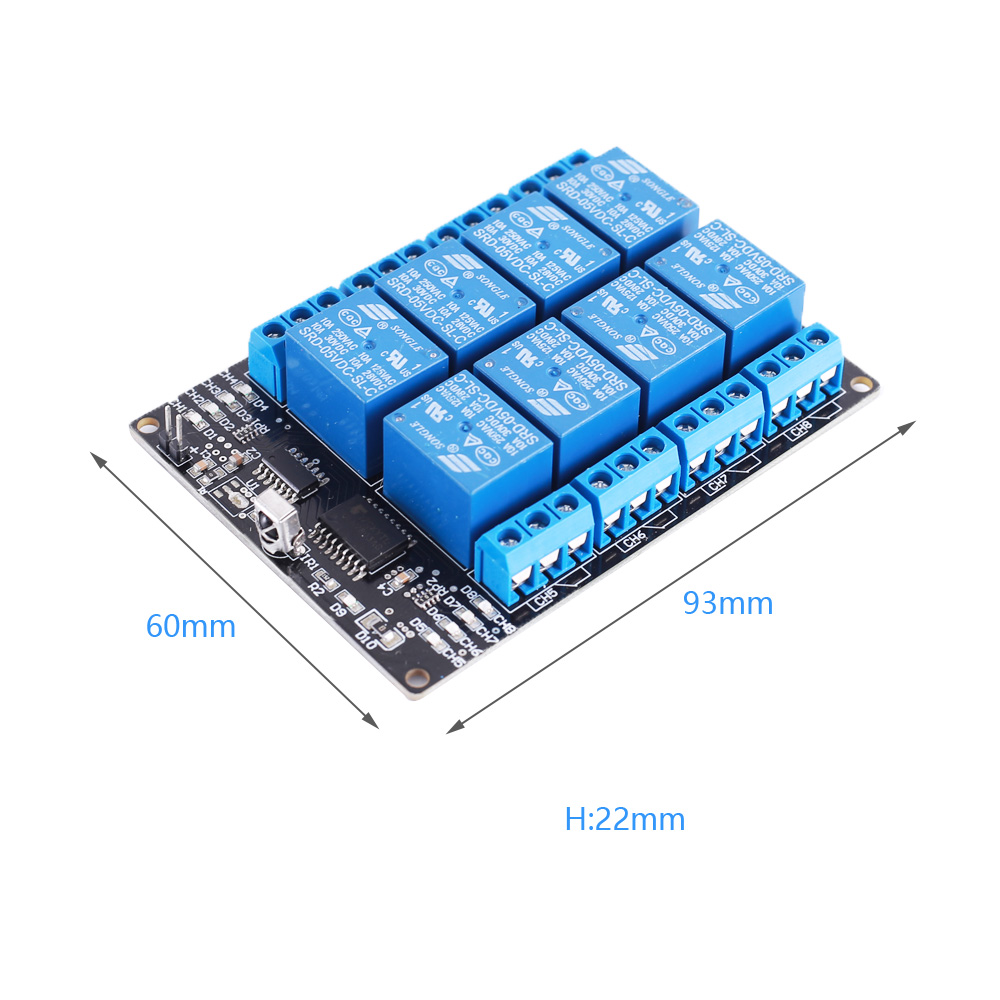

  8>.Module Size:93*60*22mm
  9>.Remote Controller Size:86*40*5mm

4.Package:

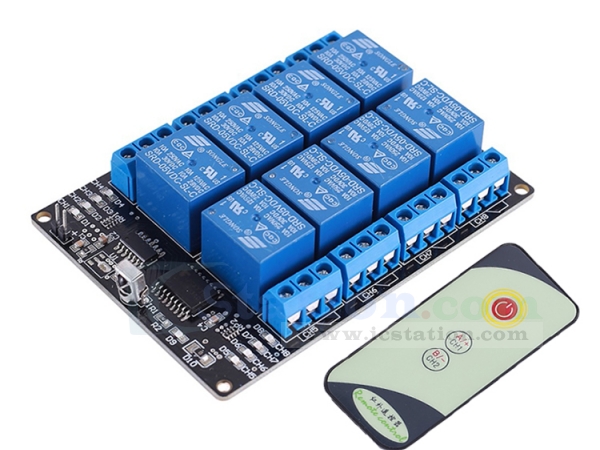

1pcs 8bit Infrared Receiver Module
1pcs Remote Control
