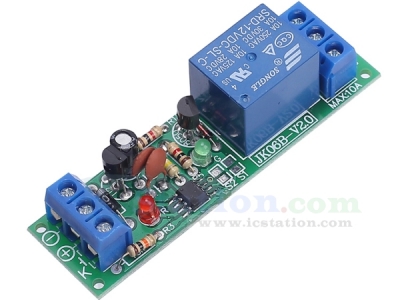

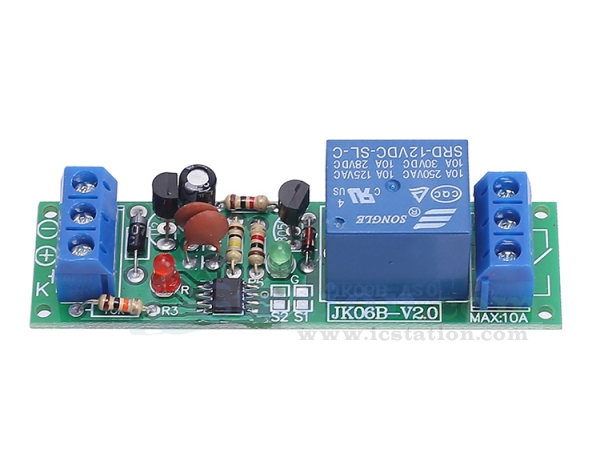

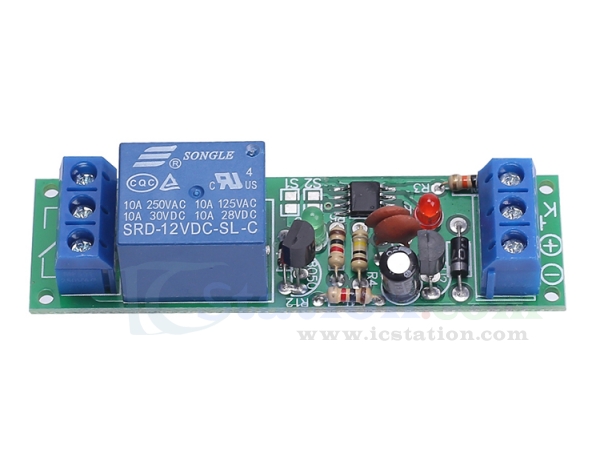

1 Channel Self-Locking Switch High Level Trigger 12V Relay Module

1.Description:
  It is a 12V self-locking relay module.When the K terminal is in contact with the positive pole,the state of the relay is reversed.Touch it once,the relay is closed,and touch it again,the relay is released.

2.Feature:

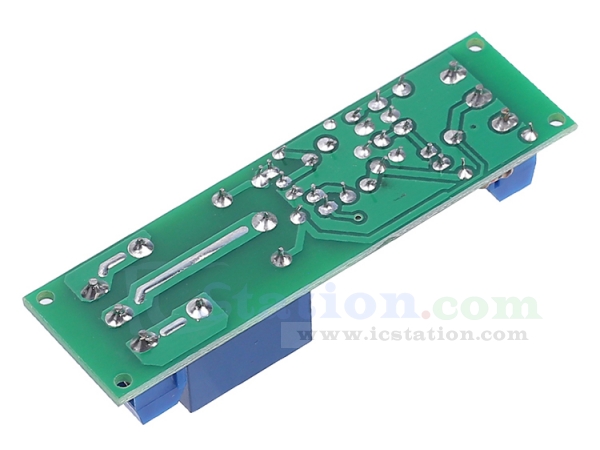

  1).The circuit board adopts high-strength glass fiber board with excellent electrical performance.
  2).All wiring adopts screw posts,which is convenient for wiring.
  3).It has super anti-jamming and anti-shake function.
  4).It has mounting holes so you can install it where you want.

3.Parameter:
  1).Product Name:12V Self-Locking Relay Module
  2).Working Voltage:DC 12V
  3).Trigger Current:0.1mA
  4).Working Current:2mA (static),50mA (pull in)
  5).Load Capacity:10A 250V
  6).Contact Form:with normally open normally closed,SPDT
  7).Work Temperature:-25℃~85℃
  8).Work Humidity:5%~95%RH
  9).Size:71*20*20mm

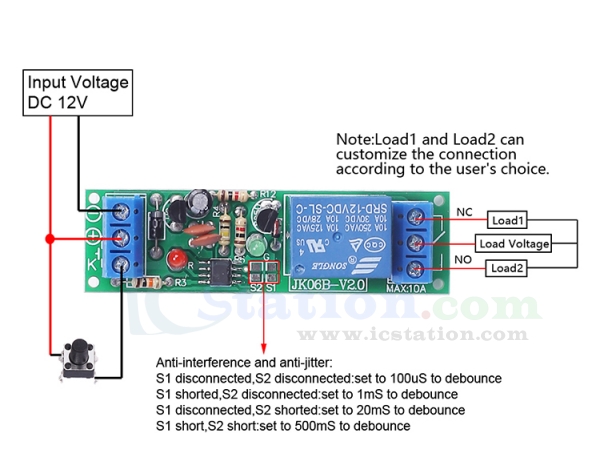

4.Anti-Shake Settings:
  1).S1 disconnected S2 disconnected:set to 100us to debounce
  2).S1 is shorted and S2 is disconnected:set to 1ms to debounce
  3).S1 is disconnected and S2 is shorted:set to 20ms to debounce
  4).S1 short circuit S2 short circuit:set to 500ms to debounce

5.Package:
  1pcs 12V Self-Locking Relay Module
