Description:

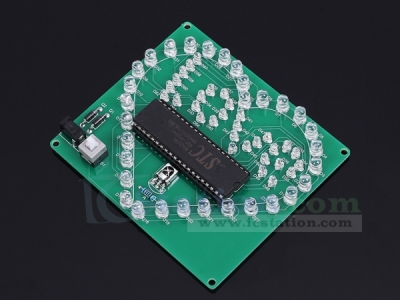

This is a DIY Heart Shape breathing colorful lamp kit. You need solder it by yourself.
Features:
1>. Multiple animations
2>. Animation speed adjustable
3>. Infrared wireless remote control
4>. Breathing lamp
Parameters:
| NO. | Parameters | Value |
| 1 | Name | Heart shape led |
| 2 | Operating voltage | DC 4.5-5V |
| 3 | Difficulty of soldering | Easy |
| 4 | Circuit board size | 108*98*17mm |
| 5 | Light color | Colorful |
| 6 | Power supply mode | USB |
| 7 | Circuit board material | Double-faced 1.6mm RF-4 |
| 8 | Board color | Green |
Component List:
| NO. | Component Name | PCB Marker | Parameter | QTY |
| 1 | Ceramic Capacitor | C1,C2 | 27pf | 2 |
| 2 | 5mm LED | D1-D31 | RGB | 31 |
| 3 | 3mm LED | D33-D63 | Blue | 31 |
| 4 | HX1838 Infrared Receiver | LED_S | 1 | |
| 5 | 3.5mm Power Socket | P1 | 1 | |
| 6 | IN4007 | Q1,Q2 | 2 | |
| 7 | Metal Film Resistor | R | 10K | 1 |
| 8 | Self-Locking Switch | S1 | 1 | |
| 9 | IC Socket | U1 | DIP-40 | 1 |
| 10 | STC89C52 | U1 | DIP-40 | 1 |
| 11 | Crystal | Y | 12MHz | 1 |
| 12 | PCB | 1 |
Installing Tools:
1>. Electric iron one (power is best at 40W)
2>. Solder wire reel (diameter is best about 0.8mm)
3>. A number of solder paste or rosin
4>. Scissors pliers
5>. Component box (store the small components)
Remote control button description:
Installation Manual Download:
.png)
Finished Product Picture:
Tested by ICStation's Outstanding Partner Workshop MasterOK electronics Repair:
Tested by ICStation:
Learn More Details in the Video:
| Quantity | 5+ | 10+ | 30+ |
| Price | $5.80 | $5.60 | $5.30 |
