Description:
It is an LED flashing DIY kit, issued a dazzling color, if it's together with the music, the audio-visual effect will be better.
Parameters:
1>. Operating voltage: DC4.5V-5V;
2>. Power supply mode: 3pcs AA battery or USB charger;
3>. PCB Size:82*90mm;
4>. PCB Material:1.6mm RF-4
5>. Acrylic Shell Size:30*100*105mm
Component List:
| NO. | Component Name | PCB Marker | Parameter | QTY |
| 1 | RGB LED | D1-D50 | 5mm | 50 |
| 2 | Metal Film Resistor | R1-R10 | 1K | 10 |
| 3 | Self-Locking Switch | SW1 | 1 | |
| 4 | IC Socket | U1 | DIP-28 | 1 |
| 5 | STC15F204EA | U1 | DIP-28 | 1 |
| 6 | Micro USB | P1 | SMD | 1 |
| 7 | Male Pin | J20 | 4P | 1 |
| 8 | PCB | 82*90mm | 1 | |
| 9 | Acrylic Shell | 6 | ||
| 10 | Copper Pillar | M3*10 | 4 | |
| 11 | M3*6 Screw | 3mm | 8 | |
| 12 | M2*10 Screw | 2mm | 11 | |
| 13 | M2 Nut | 2mm | 11 |
Schematic Diagram:
Application:
1>. Home Furnishing decoration
2>. Store decoration
3>. Graduation design
4>. Practice for electronic enthusiasts
5>. Holiday gifts
Finished Product Picture:
(Notice: Picture is just for reference, please take received product as standard.)

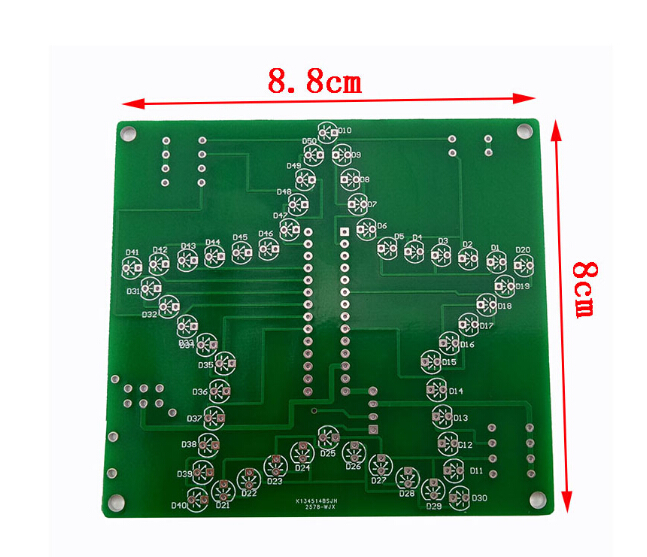

Product Size:
Here the Installation Manual:
.png)
Tested by ICStation's Outstanding Partner Muy Fácil De Hacer:
Learn More Details in the Video:
