Description:
It is an LED flashing DIY kit, issued a dazzling color, if it is with the music together, the audio-visual effect will be better.
Parameters:
1>. Operating voltage: DC4.5V-5V;
2>. Power supply mode: 3pcs AA battery or USB charger;
3>. PCB Size:82*90mm;
4>. PCB Material:1.6mm RF-4

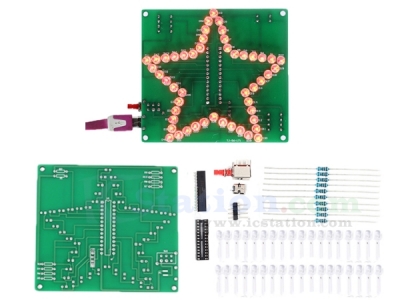

Component List:
| NO. | Component Name | PCB Marker | Parameter | QTY |
| 1 | RGB LED | D1-D50 | 5mm | 50 |
| 2 | Metal Film Resistor | R1-R10 | 1K | 10 |
| 3 | Self-Locking Switch | SW1 | 1 | |
| 4 | IC Socket | U1 | DIP-28 | 1 |
| 5 | STC15F204EA | U1 | DIP-28 | 1 |
| 6 | Micro USB | P1 | SMD | 1 |
| 7 | Male Pin | J20 | 4P | 1 |
| 8 | PCB | 82*90mm | 1 |
Warm Tips:
This is the delivery suite of parts, you need soldering installation. SCM has written procedures, successfully tested.
Schematic Diagram:
Download Installation Manual here:
Application:
1>.Home Furnishing decoration
2>.Store decoration
3>.Graduation design
4>.Practice for electronic enthusiasts
5>.Holiday gifts

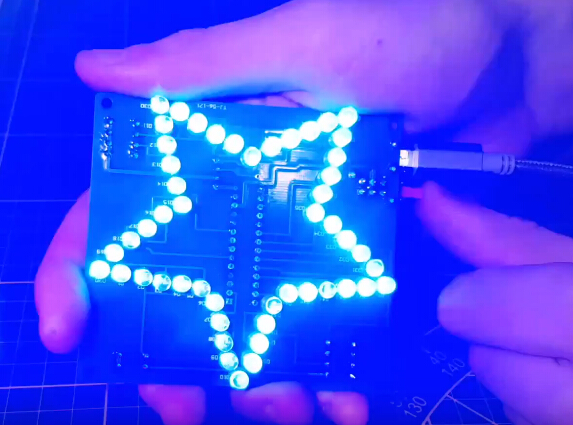

I. Tested by ICStation's Outstanding Partner RGBFreak:
Learn More Details in the Video:
(The language in the video is English)
II. Tested by ICStation's Outstanding Partner E-Station:
Learn More Details in the Video:
(The language in the video is Music)
