1.Description:
It is a LoRaWAN RF Module.A LoRa module is installed on the module,and the serial port and peripheral pins are led out.With the factory firmware,the sending and receiving control of LoRaWAN can be easily performed by sending commands through the serial port assistant.
2.Feature:
1).The ASR6601 chip is a general-purpose LPWAN wireless communication SoC that integrates an RF transceiver,a modem and a 32-bit RISCMCU.The MCU adopts ARM core,and the operating frequency can reach 48MHz.
2).The Ra-08H module supports LoRa modulation and traditional (G)FSK modulation under the LPWAN use case;meanwhile,the transmitter also supports BPSK modulation and (G)MSK modulation,and the receiver supports (G)MSK modulation.
3).The Ra-08H module on the development board provides ultra-long range and ultra-low power communication for LPWAN applications,which can be widely used in smart meters,supply chain and logistics,home building automation,security systems,remote irrigation systems,etc.
3.Parameter:
1).Product Name:LoRaWAN RF Module
2).Module:Ra-08H-Kit
3).Suitable Module:Ra-08H
4).Antenna Form:external SMA
5).Spectrum Range:803-930MHz
6).Input Voltage:DC 5V
7).Input Current:500mA(Min)
8).Support Interface:UART/GPIO/ADC/PWM/12C/12S/SPI/DAC
9).Number of IO Ports:IO2,IO4,IO5,IO8,IO9,IO11,IO14,IO15
10).Serial Port Rate:Low rate serial port,default 9600 bps
11).Transmission Protocol:LoRaWAN,LinkWAN
12).SPI Flash:128KB
13).Package:DIP-30
14).Work Temperature:-40℃~85℃
15).Operating Temperature:-40℃~125℃
16).Work Humidity:5%~95%RH
17).Size:48*25*9mm
4.Power Supply Mode:
1).Micro USB interface for power supply
2).3V3 and GND/5V5 and GND pin header power supply
5.Application:
1).Remote irrigation system
2).Smart animal husbandry
3).Street light control
4).Automated industry

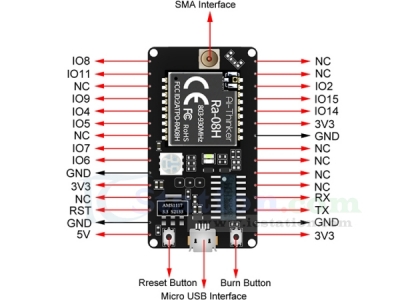

6.Pin Description:
1).IO8:GPIO8/ADC_IN1
2).IO11:GPIO11/ADC_ IN0
3).NC:NC
4).IO9:GPIO9/DAC_OUT
5).IO4:GPIO4/SSP1_CLK
6).IO5:GPIO5/SSP1_NSS
7).IO7:GPIO7/SWD_CLK
8).IO6:GPIO6/SWD_DATA
9).GND:GND
10).3V3:Input Voltage 3.3V
11).RST:RSTN_IN external reset
12).5V:Input Voltage 5V
13).TX:GPIO17/UART TX
14).RX:GPIO60/LPUART-RX or GPIO16/UART RX
15).IO14:GPIO14/12C_SCL
16).IO15:GPIO14/12C_SDA
17).IO2:GPIO2/BOOT
7.Package:
1pcs LoRaWAN RF Module
