DC 0-3.3V to 4-20mA Non-Isolated Voltage to Current Converter Module Linear Output LED Indicator

$6.99
$9.9930%
Quantity30+
Price$8.99
00d : 00h : 00m : 00s
Item ID: GY18326

Product Details

1.Description:

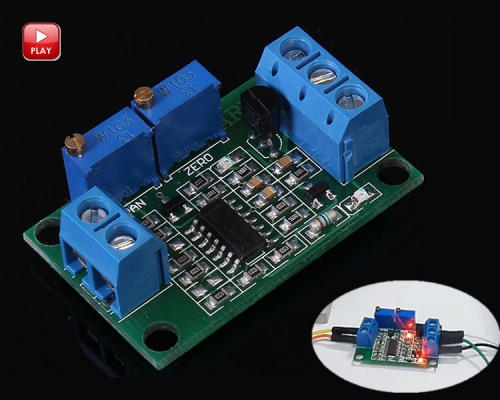

    It is a 0-3.3V to 4-20mA Voltage to Current Converter. It can convert DC 0-3.3V voltage signal to 4-20mA current signal. User also can reset input voltage range and output current range by two potentiometer. It also can be used a constant current output source without input voltage signal.

2.Features:
    1>.Repeatable setting parameters
    2>.Constant current output source
    3>.750ohm drive load

3.Parameters:
    1>.Product Name:0-3.3V to 4-20mA Voltage to Current Converter
    2>.Working Voltage:DC 12V-32V
    3>.Input Signal Voltage:DC 0-3.3V (Default)
    4>.Output Signal Current:4mA-20mAV (Default)
    5>.Precision: 0.01A
    6>.Working Temperature range:-10℃~70℃
    7>.Working Humidity Range:5%-95%RH
    8>.Module Size:56x26x18mm

4.Reset Parameters:
    1>.For example: set the module to 0-2.5V to 3-18mA.
    2>.Input 0V voltage signal.
    3>.Adjust R6(Right) potentiometer until the output current is 3mA.
    4>.Adjust R6(Left) potentiometer until the output current is 18mA.

5.Application:
    1>.PLC industrial controller
    2>.Circuit safety protection equipment
    3>.Factory circuit design
    4>.Industrial measuring instruments

6.Package:
 1pcs 0-3.3V to 4-20mA Voltage to Current Converter
