Description:
Sensing the ambient temperature with a K-type thermocouple and displaying it on the display.

Features:
1>. Use industrial grade K-Type sensor;
2>. LED display;
3>. Measuring temperature range is wide;
4>. With temperature compensation function.Effectively avoids the influence of ambient temperature on the sensor, and the temperature measurement is more accurate.
5>. High precision detection;

Parameters:
1>. Product Name: K-Type High Temperature Thermometer;
2>. Working Voltage: DC 4.0V-28V;
3>. Temperature Type: Celsius;
4>. Measure Range: -60℃~999℃;
5>. LED Display: Red 3Bit;
6>. Length of sensor: 0.5meter;
7>. Measurement Accuracy: 1℃(It is 0.1℃ when temperature is -9.9~9.9℃);
8>. Size for display: 48*29*26mm;

Using Steps:

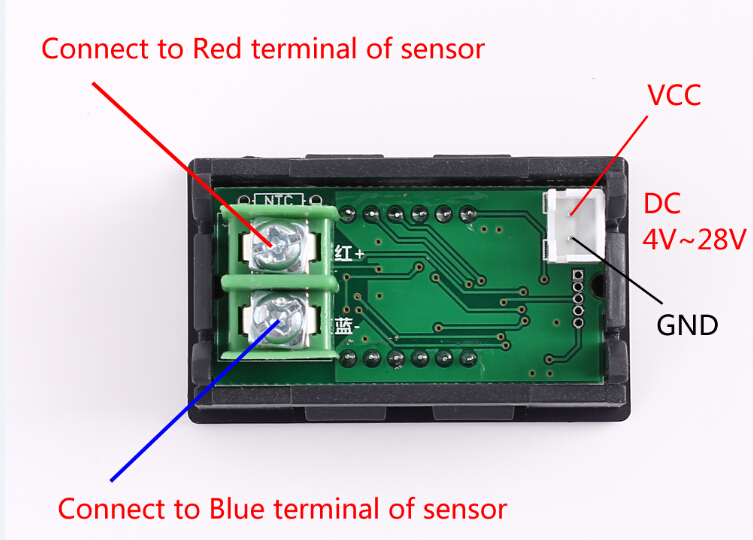

1>. Connect sensor to display screen in right terminal;
2>. Place the sensor in the correct position;
3>. Connect to power supply white socket.Pay attention to the connect direction;

Application:
1>. Industrial temperature measurement;
2>. Measurement of temperature in the life;
3>. It can be embedded in an instrument to measure certain specific temperatures;
4>. Applied to the measurement of boilers, air, liquids, etc;
5>. Production workshop;
6>. Vegetable cultivation.

Note:
1>. Sensor wire should not be connected incorrectly.
2>. Power wire attention direction

Package:
1>. 1pcs K-Type High Temperature Thermometer;
2>. 1pcs K-Type Thermocouple ;
3>. 1pcs 15cm 2P XH2.54-2P Cable;

Product Details:

Picture One:

Picture Two:

Picture Three:
