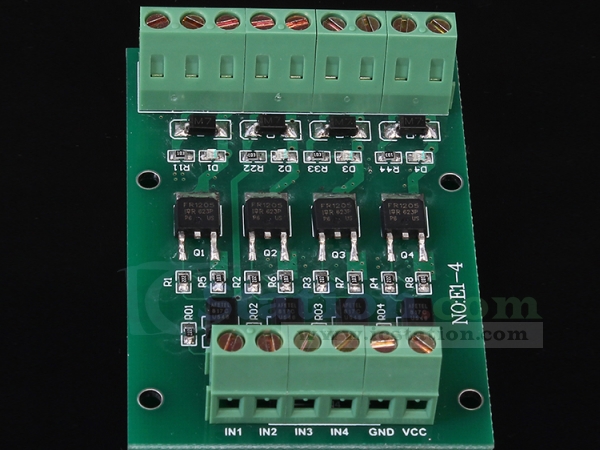

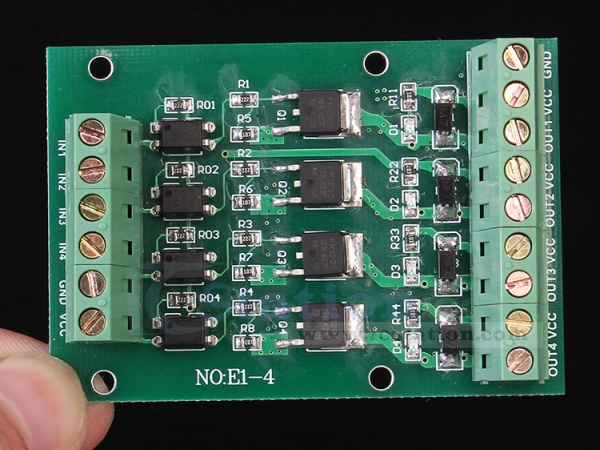

Optocoupler Isolation Relay Module 4-Channel FET Field-Effect Tube Module NMOS FR1205 DC 5-24V Solenoid Driver

9821
5 9
$12.99 $9.09
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Product Introduction:
1.Size:63*48*16mm
2.Main Chip:FR1205(NMOS)
3.Input Controlling Voltage:DC 5-24V
4.Output Controlling Voltage:55V (max);current:5A (min)
5.Input Control Power And Controlled Power Are Both Optocoupler Isolated
6.4-Channel Output Signal With Indicator Light
7.4-Channel Input Signal Effective With Optocoupler Isolation
8.Using Pin To Input:convenient to connect with SCM
9.Using Connection Terminal To Output:convenient to connect with controlled device power

Applications:
1.Can use SCM,PLC or other devices output PWM signal to control DC motor speed regulation or dimming of LED
2.Can use SCM,PLC or other devices output high/low level to control output one DC power

Pin Definition:
