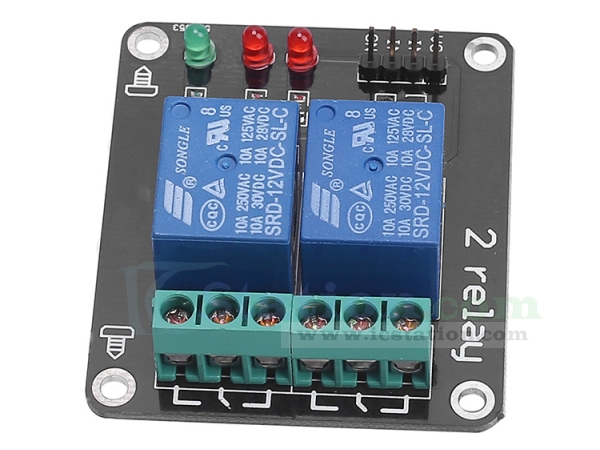

2 Bit 12V Relay Module with Optocoupler Isolation Support High and Low Level Trigger Dual Relay Module

1.Description:
  It is a 2-Bit 12V relay module. It is suitable for various platforms such as 51/AVR/AVR/ARM, and can control various household appliances and high current loads.

2.Feature:
  1).The contact part of the module is independently wired, which is safe and reliable.
  2).It comes with standard interfaces and can be extended on various development boards.
  3).It has fixed screw holes for easier installation.
  4).It supports high and low level triggering.

3.Parameter:
  1).Product Name:2-Bit 12V Relay Module
  2).Working Voltage:DC 5V
  3).Relay Voltage:AC 250V(Max)/DC 30V(Max)
  4).Relay Current:AC 10A(Max)/DC 10A(Max)
  5).Power Indicator Color:Green
  6).Eight-Way Relay Status Indicator Color:Red
  7).Work Temperature:-25℃~85℃
  8).Work Humidity:5%~95%RH

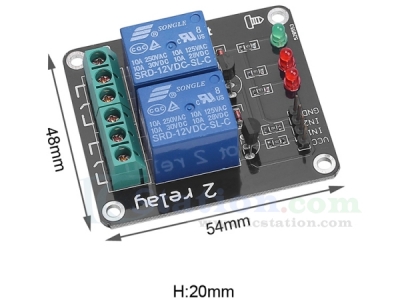

  9).Size:54*48*20mm

4.Usage:
  1).Support single chip control
  2).Industrial field
  3).PLC control
  4).Home intelligent control

5.Package:
  1pcs 2-Bit 12V Relay Module
