1.Description:
It is a 13.56MHz RFID read module. It can read IC cards and Y13R conforms to ISO14443A.It can be easily connected to various systems such as computers, PLCs, microcontrollers, Android, Arduino, etc. in a variety of ways.
2.Feature:
1>.Support UART/RS232/RS485/IIC output
2>.Comes with mounting holes
3>.Integrated one-key reading and writing function
4>.Powerful PC software
3.Description:
1>.Product Name:13.56MHz RFID Read Module
2>.Working Frequency:13.56MHz
3>.Protocol:ISO14443A
4>.Card Type:S50
5>.Card Reading Distance:60mm(Max)

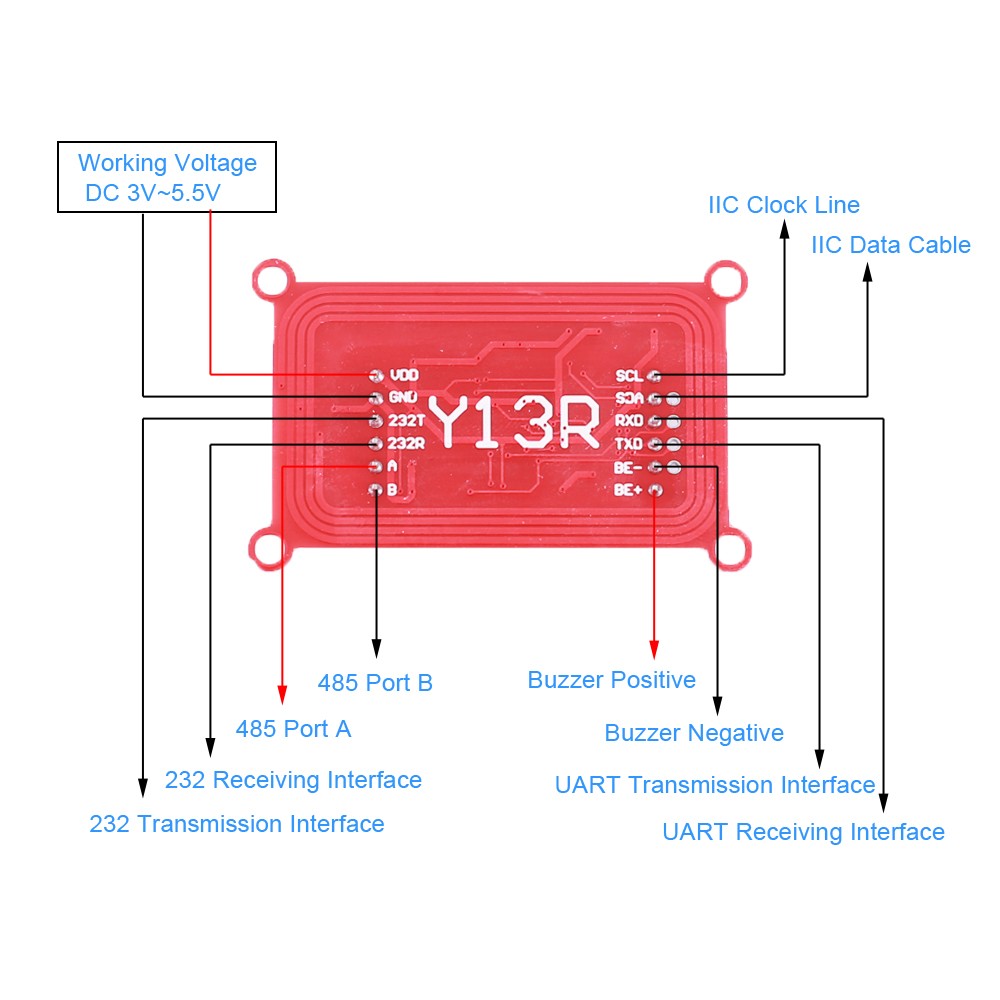

6>.Output Interface:RS485/RS232/UART(TTL)/IIC
7>.Working Voltage:DC 3V~5.5V
8>.Working Current:19mA~25mA
9>.Standby Current:0.2mA
10>.Antenna:Onboard antenna
11>.Baud Rate:9600 (can be set)
12>.Work Temperature:-20℃~85℃
13>.Work Humidity:5%~95%RH
14>.Size:55*35*14mm
4.Card Number:
1>.Active card swiping:swipe the card directly,the module light will turn on once,the status bar displays the data [received],and the card reading is successful.If the light does not turn on,check the power supply;if the software does not receive data,check the serial cable connection,driver,and serial number.
2>.Command to read the card:Put the card on the antenna,click the [read card number] command,the module light will turn on,the status bar will display the data sent and received,as well as the card reading status.If only sending is not received,check the serial cable connection.(Serial line transmission and reception are separated,sometimes it can be received but not sent.)
5.Read and Write Data:
1>.Command to write block data:put the card on the antenna,enter Chinese in the [Chinese] box or the [Data] box (the two boxes will be synchronized),click [Write Data],the module light will turn on,and the status bar will display sending and receiving data ,And write data status.
2>.Command to read block data:place the card on the antenna,click [Read Data],the module light will turn on,the status bar will display the data sent and received,and the data read status.If successful,the data box will be updated to the read data data.
3>.Automatically read block data:In the first step,set [Work Mode] in the module settings in advance to read block data,click [Set Mode],the setting mode is successful,and it can be saved after power-off.The second step is to swipe the card directly,the module light turns on,the status bar displays the received data,the data box displays the data,and the block data is successfully read.
6.Recharge Deduction
1>.Apply for a card:Place the card on the module,click [Apply for a card],the module light will turn on,the computer hears a beep,the status bar displays the data sent and received,the card application is successful.
2>.Recharge:You need a good card to recharge.Place the card on the module,click [Recharge],the module light will turn on,the computer will hear a beep,the status bar displays the data sent and received,the balance box displays the balance,and the recharge is successful.The deductions are exactly the same.
3>.Restore card:Put the card on the module,click [Restore Card],the module light will turn on,the computer hears a beep,the status bar displays the data sent and received,and the card is restored successfully.
7.Encryption:
1>.The first step,load the key:Generally,the AB keys are the same,if they are all ABABABABABAB,click [Load Key] to save the key to the module,and save it after power-off.
2>.The second step,apply for a card:Click [Apply for a card] to encrypt the key to the card.After success,the card key is ABABABABABAB.
3>.The third step,use:only the module whose loading key is ABABABABAB can read and write this card.
4>.Recover the card:directly click [Clear Card],the card key will return to the default FFFFFFFFFFFF.
8.Package:
1pcs 13.56MHz RFID Read Module
