Home > Sensor Module > Water Level Sensor > YF-S402C DC 5V 12V 3/8inch G3/8 Water Flow Hall Sensor Switch Flowmeter Hall Sensor Counter 0.8MPa 10L/min

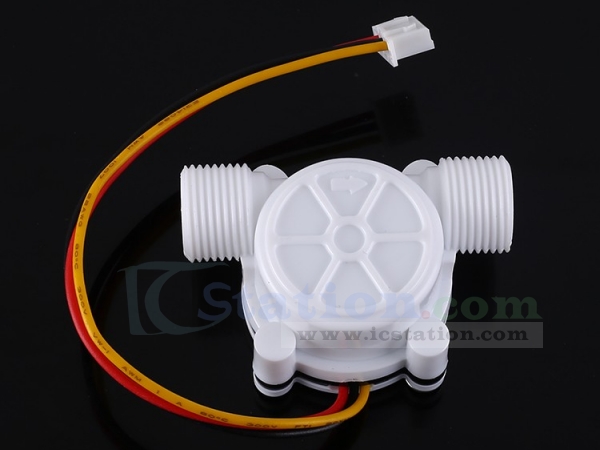

YF-S402C DC 5V 12V 3/8inch G3/8 Water Flow Hall Sensor Switch Flowmeter Hall Sensor Counter 0.8MPa 10L/min

15149
5 9
$5.49
Contact us for wholesale price
- OR - - OR - Add to Wish List
1.Description:
  It is a flow meter for measuring water flow.

2.Feature:
  1>.High precision
  2>.High pressure resistance
  3>.Standard size

3.Parameter:
  1>.Model: YF-S402C
  2>.Specification: G3/8
  3>.Work Voltage:DC 3.5V-12V
  4>.Work current:10mA
  5>.Flow pulse characteristic:F=23*Q;Q=L/min
  6>.Precision:3%
  7>.Output current:<10mA
  8>.Flow range:0.3-10L/min
  9>.Water pressure environment:<0.8MPa
  10>.Work Temperature:0℃~80℃
  11>.Work Humidity:5%~90%RH
  12>.Size:54*35*27mm
  13>.Wire length:150mm

4.Function:
  1>.Calculate the flow through the sensor liquid by receive output frequency from sensor.

5.Pin definition:
  1>.Red wire:VCC.It is used to connect to positive of input work voltage.
  2>.Yellow wire: Signal output.
  3>.Black wire:GND.It is used to connect to negative of input work voltage.

6.Package:
  1pcs YF-S402C G3/8 Water Flow Sensor
