1.Description:
It is a 12V/5A DC-DC Step Down Power Supply Module 60W 36V-75V to 12V 5000mA Buck Voltage Converter.
2.Feature:
1>.Wide input voltage range
2>.Support input undervoltage, reverse connection protection
3>.Support output over voltage, over current, short circuit protection
4>.Supports over temperature protection
3.Parameter:
1>.Model: MP-D60S12
2>.Output voltage: 12V
3>.Rated current: 5A
4>.Workting current range: 0-5A
5>.Efficiency: ≥86%
6>.Voltage Ripple(Max): 120mVp-p%
7>.Output accuracy: ±3%
8>.Rated power: 60W
9>.Linear adjustment rate: ±1%
10>.Load adjustment rate: ±3%
11>.Start, rise, hold time: 1S、10ms、5ms
12>.Input voltage range: 36~75VAC
13>.Input frequency: NA
14>.Standby power consumption: ≤0.2W
15>.Power factor: NA
16>.Surge current(Max): 20A
17>.Leakage current(Max): 0.7mA
18>.Input undervoltage protection: 28V-34V
19>.Output overcurrent protection: 110%-150% of the rated current, playing mode, after the current dropped to 105% rated output current can be automatically restored
20>.Output overvoltage protection: 110% to 130% rated output voltage, shut off the output, restart recovery
21>.Output short circuit protection: The short circuit can be automatically recovered after removal
22>.Over temperature protection: The temperature can be automatically recovered when it drops
23>.Input reverse connect protection: No output, restore normal after correct cable connection
24>.Overload recovery: Protected mode, which automatically recovers after load anomalies are removed
25>.Work Temperature: -25℃~85℃
26>.Work Humidity: 5%~95%RH

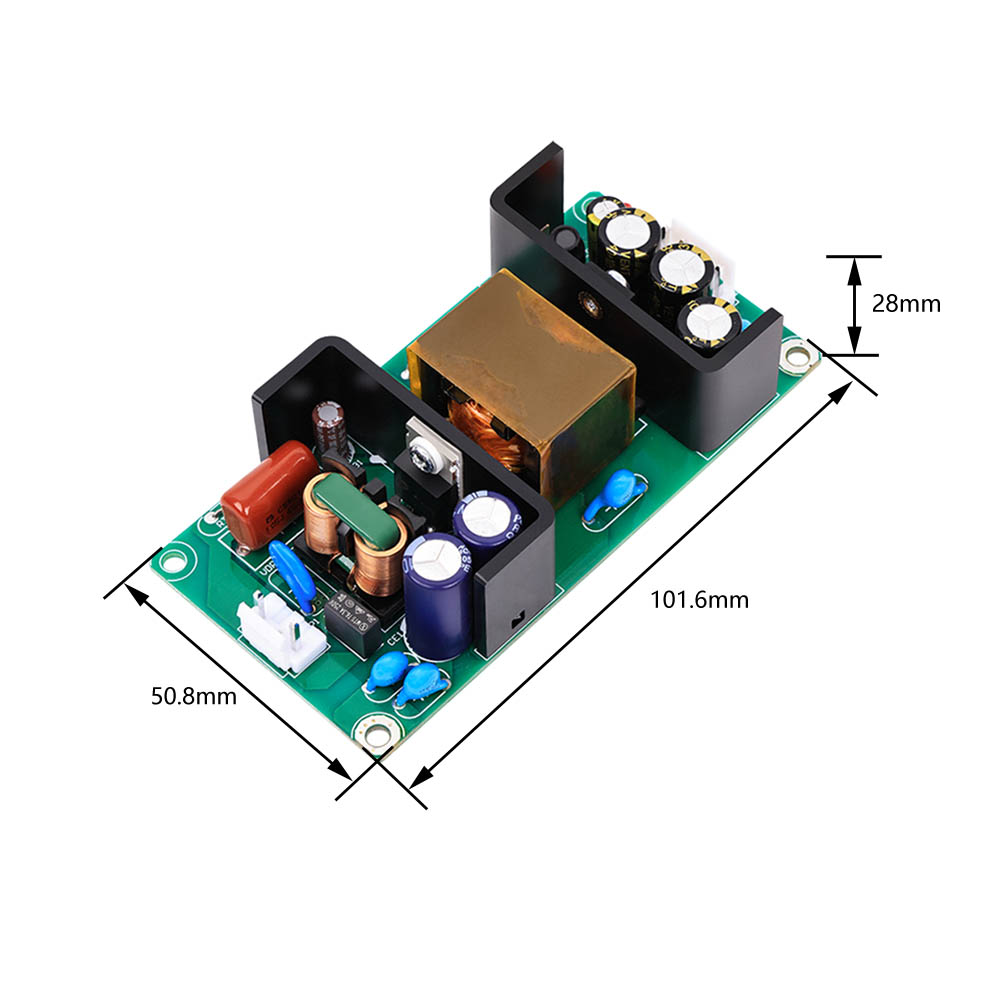

27>.Size: 101.6*50.8*27.5mm
4.Notes:
1>.Unless otherwise specified, these values are typically measured at 48VDC and 25°C;
2>.Standard for ripple and noise test: 0.1uF and 47uF capacitors in parallel at the output, 20MHz bandwidth oscilloscope.
5.Package:
1pcs 60W 36V-75V to 12V 5000mA Buck Voltage Converter.
1pcs wire
