Home > Function Module > Digital Amplifier Module > TDA8954TH XH-M252 Ultra High Power Class D Digital Amplifier Module AC 24V Stereo Amplifier Dual Chip 2x420W

TDA8954TH XH-M252 Ultra High Power Class D Digital Amplifier Module AC 24V Stereo Amplifier Dual Chip 2x420W

12546
5 1
$36.99 $25.89 (only 0 pcs )
Contact us for wholesale price
Time Remaining:

Sold out


Description:
This product is a built-in TDA8954TH chip with the power of 2*420W channel digital power amplifier board.

Parameters:

Parameter Value
Chip TDA8954TH
Supply voltage Recommend Dual AC 24V (Max.30V)
Output power 420W*2
Output load 2-8 Ohm
Vocal tract number 2(Left+Right channel)
Net weight 240g
Appearance size 107*93*30mm


Features:
1>. Configuring dual chips
2>. Inductance of large magnetic ring and copper core winding finite AC current
3>. New rectifier bridge, high pressure and shock resistance
4>. Large terminals, large capacity
5>. High capacitance of 8 50V1000 micro methods
6>. 1.6mm double layer high density glass fiber circuit board

Application:
1>. Connected mobile phone and computer
2>. Home Theater
3>. DIY audio

Using Attention:
Please do not connect the power and the speaker freely. Please refer to the data provided by the product description for reasonable collocation. Otherwise, the function board will be damaged.

Warm Tips:
Power amplifiers can be noisy in some cases. Here are some common reasons
1>. Hardware problem:
The power supply is unstable, or the power supply module generates interference.
The influence of switching power supply as power supply.
Using transformer power supply, do not do shielding isolation.
There are electromagnetic interference in the use of the environment.
The audio input device itself has problems.
HOW TO SOLVE:
  Power and power amplifier should maintain a certain distance. To avoid electromagnetic interference, it is best to use high quality power supply, power supply will be stable.
If you use transformers and other power supplies, it is best to use iron cover to prevent electromagnetic interference.
2>. Software problem:
Interference of Audio driver settings
Interference of Player effects
HOW TO SOLVE:
  When the power amplifier is connected to the computer or mobile phone, the relevant special effects software or sound card driver special effects can be set off.
Using special effects to ensure that the output of the power amplifier is not affected
.

Product Details:

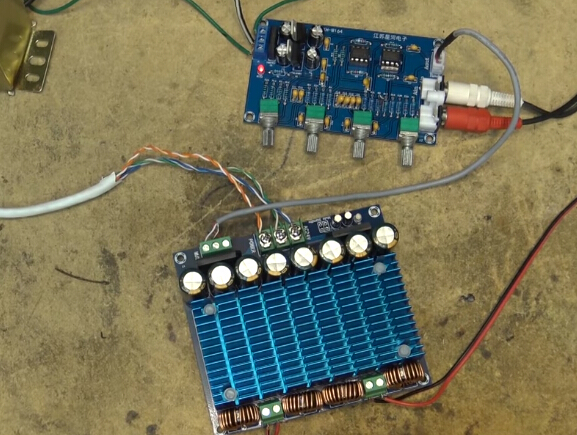

Tested by ICStation's Outstanding Partner 12voltvids:

Learn More Details in the Video:
(The language in the video is English)

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2018-09-11 05:07:38
В интернете пишут что нельзя подавать больше 24в.Я подал 29 в. И все прекрасно работает. Я немного перебрал с мощностью и звук очень мощный и сильно усилитель не переодевается.Убавить мощность помощью убавления питания.
