Home > Function Module > Voice Module > Voice Playback Module MP3 Sound Module Music Player Voice Broadcast Device Development Board for Arduino

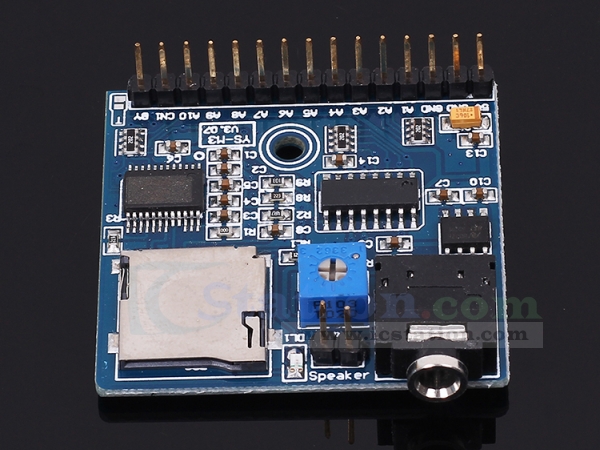

Voice Playback Module MP3 Sound Module Music Player Voice Broadcast Device Development Board for Arduino

6148
5 9
$10.99 $7.69
Quantity5+10+30+50+100+
Price$8.00$7.80$7.50$7.30$6.90
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Description:
1. Working voltage:5V DC
2. Trigger Pins:9
3. Trigger Music: 9 songs by Directly. 31 songs by MCU.
4. Support Speaker parameter:0-2W 4-8ohm (NOT include!!)
5. Support TF/SD card parameter: 16G (max)((NOT include!!))
6. Supported Sample Rate:8,11.025,12,16,22.05,24,32,44.1,48KHz

Using Steps:
1. Format SD card to Fat 32
2. Create a folder with the name "01"
3. Rename all your music tracks to be "001"-"009" (these match up with the trigger pins)
4. Copy all the files onto the SD card into the folder "01"


Note:
When saving MP3 files in the TF card, please follow the instruction below:
1. When naming the folder, creat a folder in the card and name it as 01;
2. When naming MP3 files, begin with 001-999,
for example, the first song can be named as:001.mp3 or 001Apologize.mp3,
the second song can be named as:002.mp3 or 002Pokerface.mp3, the rest can be done in the same manner.

Pin Definition:


Module Connection:


Tested by ICStation's Outstanding Partner Csongor Varga:

Learn More Details in the Video:
