1.Description:
XY-6020 is a DC-DC 20A 1200W High Power CVCC Adjustable Automatic Buck Power Supply adapter with a 1.8inch LCD display screen and remote controller. It is a non-isolated converter which supports solar charging. It can convert DC 6V-70V to DC 0.0V-60V power supply and can provide stable output. It can be used as ordinary buck power supply module, battery/solar charger or LED constant current drive and so on.
2.Features:
Solar Charging: It can output a stable voltage value when the input voltage changes which is very suitable for solar energy systems such as solar charging, solar power supply, solar voltage conversion. Also it can display internal/external temperature in Celsius or Fahrenheit.
Adjust CVCC: Constant voltage and constant current can not only stabilize the voltage, but also set the limit output current value to meet the current demand of the load. At the same time, it can also protect the load to avoid entering the over-current state.

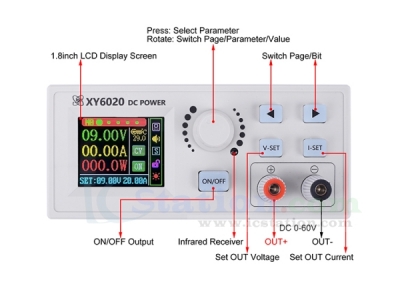

Remote Control: It can adjust and set various parameters using its built-in pots and buttons, and can also be controlled through a remote control.Faster parameter setting.
Larger HD 1.8inch LCD display screen: It adopts an upgraded full view large screen, which can display multiple parameters and working status at the same time.Experience more fluency.
Programmable Multi Parameter: It can set/display output voltage/current/power,work time, output electric energy, output capacity, input voltage and ON/OUT/CV/CC work status.You can also set default output state after power on.
Multiple Protection Mechanisms: Under-voltage, over-voltage, over-current, over-power protection, over-temperature, over-capacity, over-energy protection, timeout-protection and so on.
3.Functions:
1>.Max 1200W/20A Output Voltage
2>.Larger HD Full View 1.8inch LCD Display Screen
3>.Adjust CVCC Control Output
4>.DC 6V-70V Wide Range Input Voltage
5>.DC 0V-60V Wide Range Output Voltage
6>.Solar Charging Control
7>.Remote Control
8>.UART PC Soft Control
9>.10 sets output preset function
10>.Display output voltage/current/power
11>.Display Internal and external temperature in Celsius or Fahrenheit
12>.Display time/energy/capacity
13>.Display Multiple Parameters Simultaneously
14>.Display input voltage, ON/OUT/CV/CC work status
15>.10 working protection modes
16>.Power-down Memory Function
17>.Power-down Saving Work Mode
18>.Parameter locking to avoid misoperation
19>.Automatic control cooling fan
4.Parameters:
1>.Work Voltage:DC 6V-70V
2>.Output Voltage: DC 0V-60V
3>.Output Current: 0~20A
4>.Output Power: 1200W(Max)
5>.Max Output Voltage: (IN-volt/1.1)-2
6>.Output Ripple Value:100mV VPP
7>.Voltage Display Resolution:0.01V
8>.Current Display Resolution:0.01A
9>.Conversion efficiency:About 90%

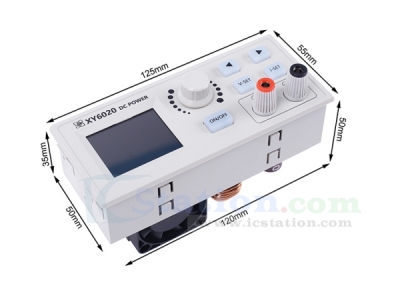

10>.Adapter Size:125*55*56mm
11>.Controller Size:90*42*12mm
5.Note:
1>.It is a DC power module,So it can not connect to AC power.
3>.It is a step down power supply, so the output voltage must be less than the input voltage.
4>.The maximum output voltage is ‘(IN-volt/1.1)-2’, that means the maximum output is ‘44/1.1-2’=38V if the input voltage is 44V. So the set output voltage can not more then 38V.
5>.Please connect input before connect battery when use as charge and make sure output voltage is higher than battery voltage.
6>.Please make sure input power is more than load power.
7>.Please step down output power if module is hot.
6.Application:
1>.High-power LED constant current drive
2>.Lithium battery charging
3>.Ni-Cd or Ni-MH battery charging
4>.Solar panel
5>.Wind Turbines
6>.Ordinary power supply
7>.Instrument voltage display
8>.Test meter
9>.Circuit test
10>.Power conversion

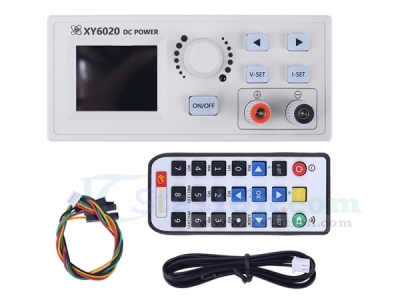

7.Package:
1pcs XY-6020 1200W 20A CVCC Buck Power Supply Driver Adapter
1pcs Remote Controller
1pcs NTC Temperature Sensor
1pcs 20cm 4Pin 1.25mm to XH2.54-4P Wire
