Product Description:
【Battery Capacity/Voltage Dual Paremater Display】Icstation battery voltage capacity tester can not only test the battery capacity percentage, but also the voltage value. This battery monitor can tolerate widest working voltage range DC 8-63V.
【Support 3 Types of Battery】Digital battery status indicator is suitable for 12V/24V/36V/48V lead acid battery, 1~16 series lithium battery, and 1~19 series lithium ion battery (8V-63V), meet your various application.(Please note: Single lithium battery should be 3.2V, and single iron-lithium battery should be 3.7V.It can not support AA, AAA battery.)
【Press button to switch the display of voltage/capacity 】This battery capacity monitor can test the battery voltage and capacity. But it can not show the value at the same time. one button control the backlight and switch the capacity or voltage display. You should press the button to switch the capacity/voltage to monitor.
【Wide Application】 Voltage and capacity percent meter can be applied to mobile and portable equipment (in addition to smartphones and PCs), such as cleaning machine, instrument and so on.
Battery Monitor Parameter:
1. Working voltage: Min 8V, Max 63V;
Working dissipation: 8 mA, Max 10 mA;
2. Sleep dissipation: 15 uA; Temperature range: 0℃ - 35℃;
3. Voltage accuracy: ±3.0%; Capacity accuracy: ±3.0%;
4. Backlight on current: 40 mA, Max 50 mA; Backlight off current: 30 mA, Max 40 mA;
5. Size: 60x23x15 mm/2.34x1.0x0.6 inch, Weight: 15g;
6. Accessory: One connector with two wires, usually 20mm in length. M2.0x5mm self-taping screwx4 (round headx2, countersunk headx2).
Battery Voltage Capacity Monitor Tester
Voltage/Capacity Dual Parameter Display
User Guide:
Before you use it please make sure what your battery type.
Please note: If you choose the wrong battery type, the capacity will display 100% or other values.
Our battery monitor can test lithium battery, lead-acid battery, and iron-lithium battery.
Use Tips:
-

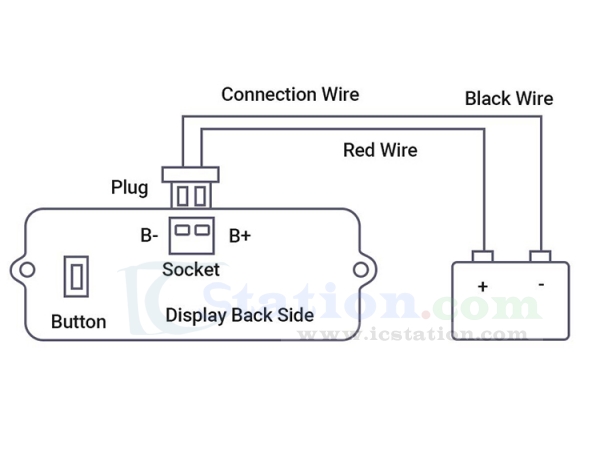

1.Please DO NOT connect the battery before pressing the button back of the monitor. Press and keep holding on the button. Then connect your battery. Third, release the button and then enter the setting interface. finally, set the correct code based on your battery type by button.
-
2.The set battery specification should match the applied battery, otherwise, the meter will display 0 or 100%.
-
3. It doesn't come with rear cover
Power off the unit, press the only button on the thing, and power it back up. Continue to hit the button until you reach the correct settings for your battery. Power off the unit, and power on the unit. Done.
These are the different settings:
Lead-acid batteries: 1P = 12V, 2P = 24V, 3P = 36V, 4P = 48V
Lithium-ion batteries: 3c = 3 cells, 4c = 4 cells, ..., 16c = 16 cells
Iron-lithium batteries:1F=1 cell, 2F= 2 cells, 3F= 3 cells,..., 19F = 19 cells
