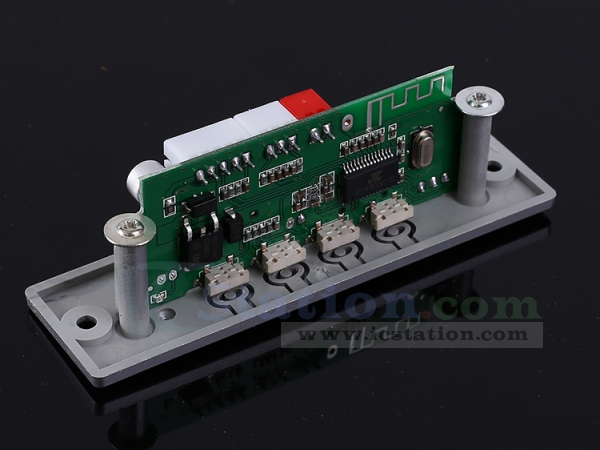

1.Description:
It is a car audio decoding module.So it can be directly connected to amplifier and then connect the speaker.It comes with a control panel, suitable for car Bluetooth speaker devices.
2.Features:
1>.Bluetooth control
2>.Support Bluetooth,U-disk,TF Card,AUX,FM work mode
3>.Support mobile phone calls
3.Parameters:
1>.Product name:LY01-BT 5V MP3 Decoder Bluetooth Module
2>.Model:LY01-BT
3>.Work Voltage:DC 3.7V-5V
4>.Work Temperature:-40℃~85℃
5>.Work Humidity:0%~95%RH
6>.Module Size:85*27*24mm
7>.Remote Controller Size:87*40*7mm
4.MP3 Player:
1>.Module will automatically identify MP3 files and playing from U-disk or TF card if user insert U-disk or TF card.
2>.Short press button ‘V-’ to play the previous music.Long press button ‘V-’ to turn down the volume.
3>.Press button ‘STOP’ to stop playing or start playing.
4>.Short press button ‘V+’ to play the next music.Long press button ‘V+’ to turn up the volume.
5>.Press button ‘MODE’ to switch work mode:Bluetooth,U-disk,TF Card,FM,AUX mode.
5.FM mode:
1>.Select FM mode by button ‘MODE’.
2>.Short press button ‘V-’ to search stations from high to low frequency.Long press button ‘V-’ to turn down the volume.
3>.Press button ‘STOP’ to stop automatic search for stations and save.
4>.Short press button ‘V+’ to search stations from low to high frequency.Long press button ‘V+’ to turn up the volume.
6.Bluetooth mode:
1>.Select Bluetooth mode by button ‘MODE’.
2>.Turn ON Bluetooth device on phone and search device ‘LY01-BT’.
3>.Connect Bluetooth device.
4>.User can adjust volume on phone or module.
5>.Short press button ‘STOP’ to answer the phone call.Long press button ‘STOP’ to refuse to answer the call.End the call if Short press button ‘STOP’ during calling.
6>.Prompt voice is ‘di dong’.
7.MP3 mode(U-disk or TF card):
1>.Short press button ‘V-’ to play the previous music.Long press button ‘V-’ to fast rewind playing.
2>.Short press button ‘V+’ to play the next music.Long press button ‘V+’ to fast forward playing.
8.Remote Control:
1>.Power Switch:Turn OFF module.Module will enter into saving mode.
2>.Press button ‘Mode’ to switch work mode.Bluetooth,U-disk,TF Card,FM,AUX.
3>.Mute:But when the call comes in, it will also process the Mute mode.
4>.Press button ‘STOP’ to stop playing or start playing.
5>.Short press button ‘prev’ to play the previous music.
6>.Short press button ‘next’ to play the next music.
7>.Short press button ‘VOL-’ to turn down the volume.
8>.Short press button ‘VOL+’ to turn up the volume.
9.Use steps:
1>.Choose the right speaker and connect as shown in wiring diagram.
2>.Connect to right power supply from input terminal.
3>.Select work mode.
4>.Test and use.
10.Application:
1>.Modified speaker
2>.Amplifier equipment
3>.Repair replacement
11.Note:
1>.The decoder board should be as far away as possible from the WIFI signal (router) avoid signal interference.
2>.Recommended power supply voltage DC 3.7V~5V.Module will be damaged if input voltage is more than 5V.
3>.It is a decoder.So it can not connect speaker directly.It need connect amplifier at first.
4>.It is strongly recommended to use a 3.7V lithium battery.
5>.Please don’t use too long wires to avoid signal interference.
6>.Please read use manual and description before use.

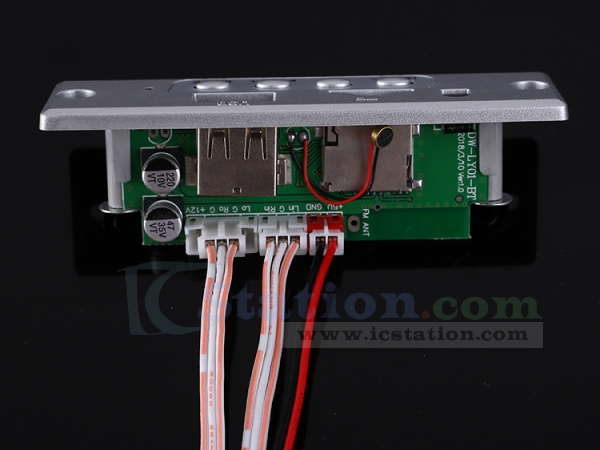

12.Package:
1>.1pcs LY01-BT 5V MP3 Decoder Bluetooth Module
2>.1pcs Remote Control with CR2025 battery
3>.1pcs 150mm 2.0mm 2Pin power supply wires
4>.2pcs 150mm 2.0mm 3Pin audio output wires
