Home > DIY Module > Radio / Speaker Kits > FM Wireless Microphone Kits FM Radio Transmitter Module FM 85-115MHz DIY Kits Frequency Modulation Audio MP3 Recorder Radio Experiment Training Kit

FM Wireless Microphone Kits FM Radio Transmitter Module FM 85-115MHz DIY Kits Frequency Modulation Audio MP3 Recorder Radio Experiment Training Kit

11840
5 1
$5.99 $4.19
Quantity5+10+20+
Price$4.00$3.90$3.70
Contact us for wholesale price
Time Remaining:
- OR - - OR - Add to Wish List
Installation Manual:

Product Introduction:
1>. Board Size: 50*30mm (L*W)
2>. Operating Voltage: DC1.5-9V
3>. Operating Current: 3.3mA-29mA
4>. Operating Frequency: 85-115MHz
5>. Receiving Device: FM radio, cellphone with FM radio function
6>. Audio Response: 20Hz-15KHz
7>. Radio Frequency Power: -2dBm~15dBm
8>. Radio Frequency Output Impedance: 50 ohm
9>. Second Harmonic: >=-40dB
10>. Transmitting Distance: 100-1000m

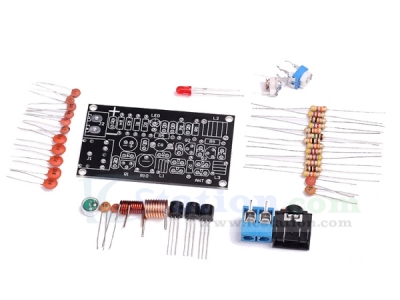

Packing List:


Board Information:

Diagram:




Application:


I. Tested by ICStation's Outstanding Partner Editronikx:






Learn More Details in the Video:
(The language in the video is Spanish)





II. Tested by ICStation's Outstanding Partner wonders of science:




The FM Radio Transmitter is assembled in the square box, and it works great! ^0^

Learn More Details in the Video:
(The language in the video is English)



Quantity5+10+20+
Price$4.00$3.90$3.70

Feedback

By
Rating: [5] 5 of 5 Stars! Date Added: 2018-05-04 12:31:26
BUEN PRODUCTO
